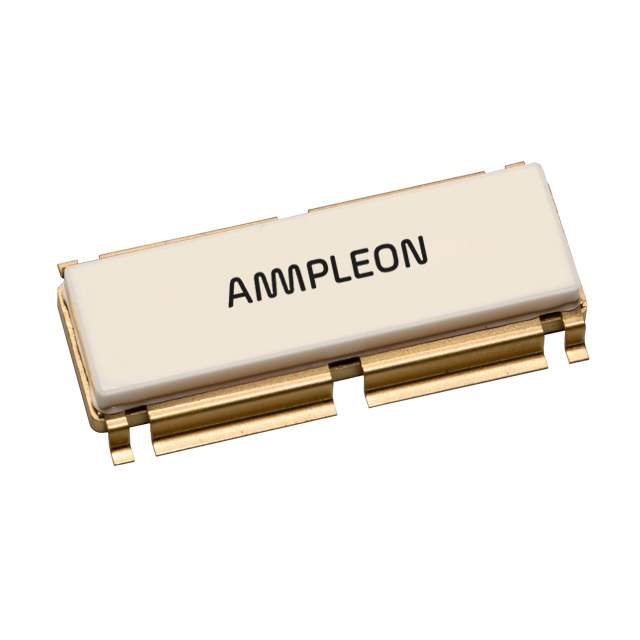

BLF8G09LS-400PGWJ Real Image
Same model may have multiple batches, images only for reference.

BLF8G09LS-400PGWJ

Part No BLF8G09LS-400PGWJ
Manufacturer Ampleon USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description RF FET LDMOS 65V 20.6DB SOT1242C / Trans RF MOSFET N-CH 65V 9-Pin CDFM T/R
Datasheet
BLF8G09LS-400PGWJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Ampleon USA Inc.
Packaging Reel package
Transistor Type LDMOS (Dual), Common Source
Frequency 718.5MHz ~ 725.5MHz
Gain 20.6dB
Voltage - Test 28V
Current - Test 3.4A
Power - Output 95W
Voltage Rating DC 65V
Package SOT-1242C
Manufacturer Package CDFM8
Win Source Part Number 770185-BLF8G09LS-400PGWJ
Popularity Medium
Supply and Demand Status Limited
Family Name BLF8G09LS-400PGW
Introduction Date December 07, 2015
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian BLF8G09LS-400PGWJ CAD Model

Description

The BLF8G09LS-400PGWJ is a Dual LDMOS Common Source transistor, manufactured by Ampleon USA Inc.

  • Frequency Range: 718.5MHz to 725.5MHz
  • Gain: 20.6dB
  • Package: SOT-1242C
  • Test Voltage: 28V
  • Current Rating: 3.4A
  • Power Output: 95W
  • Voltage Rating: 65V DC
  • Noise Figure: Not specified
  • Family: BLF8G09LS-400PGW
  • Introduction Date: December 07, 2015
  • Manufactured In: Philippines
  • Estimated EOL Date: 2030
  • Supply and Demand Status: Limited
