The AD5160BRJZ10-RL7 is a high-performance digital potentiometer designed and manufactured by Analog Devices Inc., a leader in precision high-performance electronics. This compact digital potentiometer offers a robust feature set, making it suitable for a wide range of applications in various industries such as automotive, medical, industrial, and consumer electronics.

Key Features

• Resistance Options: The device features a 10 kΩ end-to-end resistance value, providing precision and flexibility for various applications.

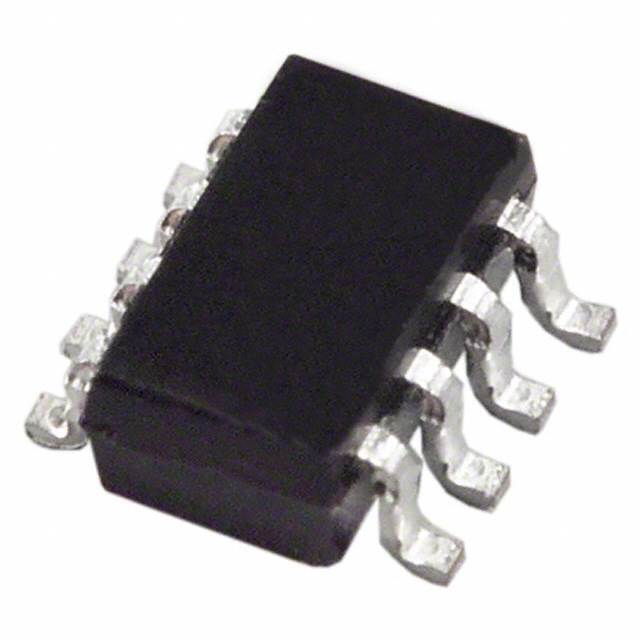

• Compact Package: Housed in a compact SOT-23-8 package, the AD5160BRJZ10-RL7 is ideal for space-constrained applications.
• Resolution: It offers a resolution of 256 positions, which allows for fine adjustment of the resistance value.
• Single Supply Operation: The device operates from a single 2.7V to 5.5V power supply, making it versatile for different circuit designs.
• I²C Compatible Interface: The digital potentiometer is equipped with an I²C compatible interface for easy communication with microcontrollers and other digital systems.
• Nonvolatile Memory: It features nonvolatile memory (EEPROM) to retain the resistance setting even after power-off, ensuring consistent performance across power cycles.
• Low Temperature Coefficient: With a low temperature coefficient, the AD5160BRJZ10-RL7 ensures stable performance over a wide temperature range.

Applications

The AD5160BRJZ10-RL7 is versatile and can be used in a variety of applications, including:

• Adjustable power supplies
• Automotive systems for sensor calibration
• Portable electronic devices
• Instrumentation and control systems
• Audio and visual equipment for volume and tone control

Reliability and Quality

Analog Devices Inc. is known for its commitment to quality and reliability. The AD5160BRJZ10-RL7 is built to meet the highest standards, ensuring consistent performance and longevity in demanding environments. With the AD5160BRJZ10-RL7, designers can trust in a digital potentiometer that delivers both precision and durability.
