Product Overview: AD625BDZ from Analog Devices Inc.

The AD625BDZ is a precision instrumentation amplifier designed by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This device is engineered to offer a combination of accuracy, low noise, and ease of use for a wide range of applications including medical instrumentation, industrial process controls, and precision data acquisition systems.

Key Features

• Precision Performance: The AD625BDZ boasts a high level of accuracy with a nonlinearity of only 0.001% max at G = 100. This ensures precise signal amplification, making it ideal for critical measurement tasks.
• Wide Gain Range: With a user-selectable gain range from 1 to 10,000, this instrumentation amplifier can be tailored to amplify a variety of signal levels, providing flexibility across different use cases.
• Low Noise: The device exhibits low noise characteristics, which is crucial for maintaining signal integrity in sensitive applications.
• High Common-Mode Rejection: It features an outstanding common-mode rejection ratio (CMRR) of 120 dB min at G = 1000, which is essential for applications where common-mode noise is present.

Efficient Design

The AD625BDZ is designed with a focus on ease of use. It requires only one external resistor to set any gain from 1 to 10,000. This simplifies the design process and reduces the bill of materials. Additionally, the device is compatible with power supplies ranging from ±4.5 V to ±18 V, accommodating various system design requirements.

Durable and Reliable

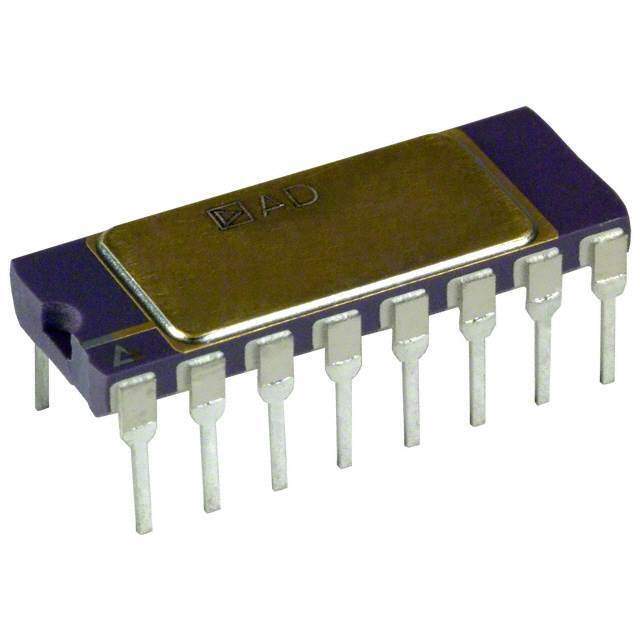

Encased in a 16-lead Ceramic Dual In-line Package (CDIP), the AD625BDZ is built for durability and reliable performance in harsh environments. The ceramic packaging provides enhanced thermal performance and helps in maintaining device stability over a wide operating temperature range.

Applications

Due to its versatile nature, the AD625BDZ is suitable for numerous applications. It is commonly used in:

• Strain gage amplifiers
• Thermocouple amplifiers
• RTD sensors
• Data acquisition systems
• Industrial control systems
• Medical instrumentation

With its combination of precision, flexibility, and robustness, the AD625BDZ from Analog Devices Inc. is a top-tier choice for professionals seeking a high-quality instrumentation amplifier for their demanding applications.
