Product Overview: AD8139ACPZ by Analog Devices Inc.

The AD8139ACPZ is a high-performance, low noise, differential amplifier designed by Analog Devices Inc., a leader in high-fidelity signal processing technology. This component is particularly well-suited for demanding applications that require precise signal amplification with minimal distortion and noise, such as medical instrumentation, professional audio equipment, and high-speed data acquisition systems.

Key Features

• Wide Bandwidth: The AD8139ACPZ boasts a wide bandwidth of 410 MHz, making it an excellent choice for applications that require high-speed performance.
• Low Distortion: With a low harmonic distortion of -92 dBc at 1 MHz, this amplifier ensures signal integrity and clarity, which is critical for high-fidelity audio and instrumentation applications.
• High Output Current: The device can deliver an output current of ±50 mA, providing ample drive capability for a variety of loads.
• Low Noise: It features a low noise density of 2.9 nV/√Hz, which contributes to the overall low noise performance of the system it is used in.
• Adjustable Gain: The gain of the AD8139ACPZ is adjustable with external resistors, offering flexibility in signal conditioning for different applications.
• Power Supply Range: The amplifier operates over a wide supply range of ±3.0 V to ±5.5 V, accommodating various system power requirements.

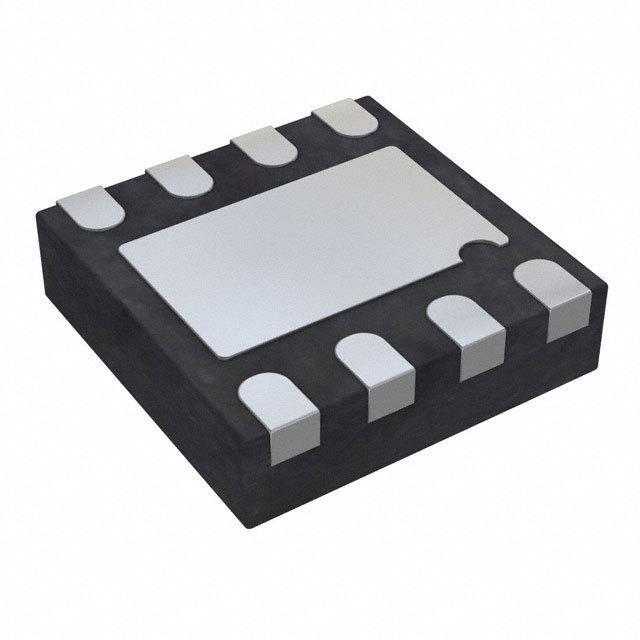

• Package: It is available in a compact 8-lead LFCSP package, ideal for space-constrained applications.

Applications

• High-speed ADC/DAC buffers
• Professional audio equipment
• Medical imaging systems
• Telecommunications
• Active filtering
• Test and measurement equipment

The AD8139ACPZ from Analog Devices Inc. is designed to meet the stringent requirements of modern electronic systems where maintaining signal fidelity is paramount. Its combination of high bandwidth, low distortion, and low noise makes it an indispensable component for designers looking to enhance their signal processing capabilities. Whether used in the lab or integrated into commercial products, the AD8139ACPZ stands out as a reliable and high-performance differential amplifier.
