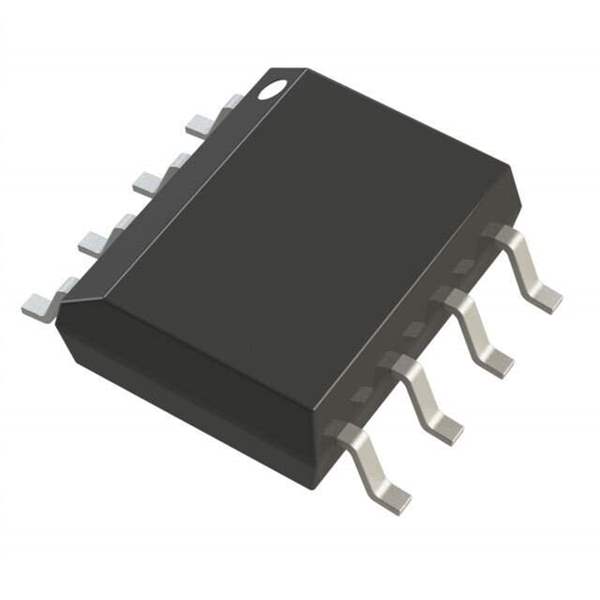

AD8307ARZ-REEL: Logarithmic Amplifier by Analog Devices Inc.

The AD8307ARZ-REEL is a sophisticated logarithmic amplifier from Analog Devices Inc., designed to provide high-accuracy amplitude measurement over a wide dynamic range. This integrated circuit is a part of the AD8307 series, which are known for their precision and versatility in handling RF signals. The device comes in a convenient reel package, making it suitable for automated manufacturing processes.

Key Features

• Dynamic Range: The AD8307ARZ-REEL boasts an impressive dynamic range of 92 dB, capable of detecting signals from the low microvolt range up to 500 mV RMS, making it ideal for a wide array of applications including RF signal strength detection and power measurement.
• Frequency Range: It operates effectively over a frequency range from DC to 500 MHz, with usable performance up to 1 GHz, allowing for its use in a broad spectrum of RF and IF applications.
• Accuracy: The device is characterized by its high accuracy, providing a logarithmic slope of 25 mV/dB and an intercept of -84 dBm. This high level of precision ensures reliable and consistent measurements.
• Temperature Stability: The AD8307ARZ-REEL offers excellent temperature stability, maintaining consistent performance over a temperature range of -40°C to +85°C.
• Supply Voltage: It operates from a single 2.7 V to 5.5 V supply, making it compatible with a variety of power sources and systems.
• Package: The device is available in an 8-lead SOIC package, which is compact and suitable for space-constrained applications.

Applications

The AD8307ARZ-REEL is highly versatile and can be used in a variety of applications such as:

• RF/IF PA linearization
• Transmitter antenna power controls
• Received signal strength indication (RSSI) for wireless communication
• Log ratio function for signal processing
• True power detection
• Low-cost radar and sonar signal processing

With its exceptional dynamic range, accuracy, and frequency capabilities, the AD8307ARZ-REEL from Analog Devices Inc. stands out as a reliable choice for engineers and designers looking to perform precise amplitude measurements in their electronic projects and systems.
