AD8515AKSZ Precision CMOS Operational Amplifier

The AD8515AKSZ is a high-performance, precision CMOS operational amplifier from Analog Devices Inc.. This op-amp features a unique combination of low noise, high speed, and low input bias currents. Designed to operate with a single or dual supply voltage, it makes a versatile choice for a wide range of applications.

With its low power consumption, the AD8515AKSZ is particularly suitable for battery-powered devices and portable applications. It boasts a typical supply current of just 1 mA, which is impressive for an op-amp with such high-speed capabilities. The device can operate within a supply voltage range of 2.7V to 5V, offering flexibility in various circuit designs.

The AD8515AKSZ also features a low offset voltage of 1 mV and an offset voltage drift of just 10 µV/°C, ensuring precision and stability over temperature variations. Its rail-to-rail input and output stages allow for a wide dynamic range, making the most of the supply voltage in signal processing tasks.

This operational amplifier has a gain bandwidth product of 5 MHz and a slew rate of 2 V/µs. These specifications indicate that the AD8515AKSZ can handle fast signals without significant distortion, which is critical in applications such as active filters, data acquisition systems, and audio electronics.

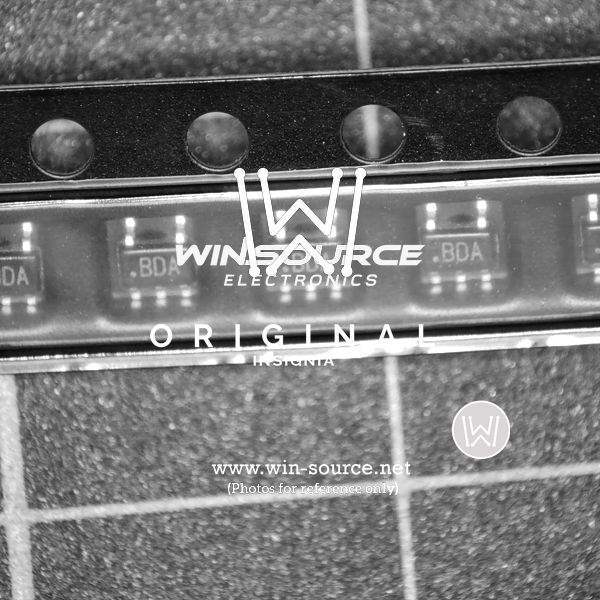

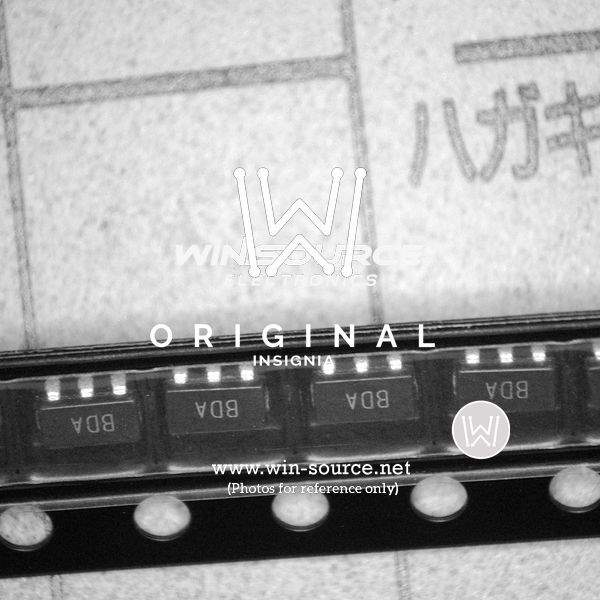

The AD8515AKSZ is available in a compact SC-70 package, making it an excellent choice for space-constrained applications. Its small footprint does not compromise its performance, ensuring that it remains a top choice for designers looking to maximize functionality in limited PCB real estate.

In summary, the AD8515AKSZ from Analog Devices Inc. is a high-quality operational amplifier that offers low noise, high speed, and precision. Its low power consumption and flexibility in supply voltage make it an ideal component for a variety of electronic circuits, particularly where space and power efficiency are critical.
