ADP5033ACBZ-9-R7: High-Efficiency, Dual-Channel Regulator

The ADP5033ACBZ-9-R7 is a high-performance, dual-channel regulator designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This compact, integrated power solution combines two high-efficiency, step-down, dc-to-dc converters with two low-dropout linear regulators (LDOs), making it ideal for powering a variety of applications such as microprocessors, DSPs, and other sensitive electronic devices that require multiple supply voltages.

The device operates over a wide input voltage range from 2.3 V to 5.5 V, which allows it to accommodate a variety of power sources from batteries to regulated power supplies. The two buck regulators are capable of delivering up to 800 mA and 300 mA of output current, respectively, and they come with a high switching frequency that enables the use of tiny, space-saving inductors and capacitors. This results in a compact power management solution that is perfect for space-constrained applications.

One of the key features of the ADP5033ACBZ-9-R7 is its high efficiency, which helps to reduce power loss and improve battery life in portable applications. The device also includes programmable soft start and power sequencing capabilities, providing additional flexibility and ease of use for system designers.

The LDOs integrated into the ADP5033ACBZ-9-R7 offer low noise performance and high power supply rejection ratio (PSRR), which are critical for delivering clean and stable voltages to noise-sensitive circuits such as RF or analog-to-digital converters. The LDOs can deliver up to 300 mA (LDO1) and 150 mA (LDO2) of output current and feature independent enable pins for better power management.

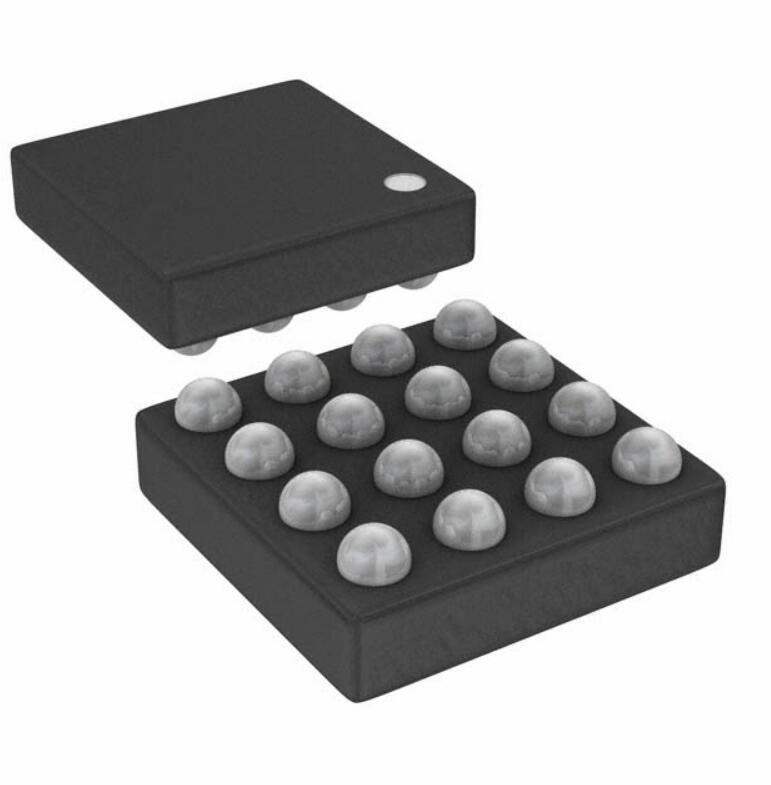

With its thermal overload protection, under-voltage lockout, and short-circuit protection, the ADP5033ACBZ-9-R7 ensures reliable operation under adverse conditions. The device is available in a compact 16-ball, 3 mm x 3 mm WLCSP package, which is RoHS compliant and designed for reflow soldering, facilitating easy integration into a wide range of electronic systems.

Whether you're designing for portable, communications, or industrial applications, the ADP5033ACBZ-9-R7 from Analog Devices Inc. provides a versatile and efficient power management solution that meets the stringent requirements of modern electronic devices.
