ADP7112ACBZ-1.2-R7 Linear Regulator by Analog Devices Inc.

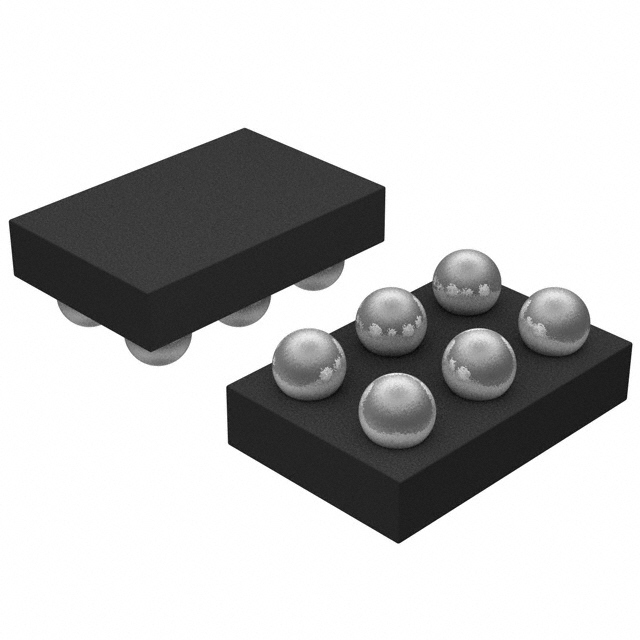

The ADP7112ACBZ-1.2-R7 is a high-performance linear regulator designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This particular model offers a fixed output voltage of 1.2V, which is meticulously regulated to ensure stable operation for sensitive electronic circuits. The device is housed in a compact, surface-mount package, making it an excellent choice for space-constrained applications.

With its low dropout voltage, the ADP7112ACBZ-1.2-R7 is capable of delivering up to 200 mA of output current while maintaining a high level of power efficiency. This characteristic is particularly beneficial in battery-powered devices, where energy conservation is paramount. The regulator boasts an impressive low quiescent current, further extending the battery life of portable devices.

The ADP7112ACBZ-1.2-R7 features multiple protection mechanisms to ensure the longevity and reliability of the end application. Overcurrent protection safeguards the device and the load from damage in the event of excessive current draw, while thermal overload protection ensures that the regulator operates within safe temperature limits. Additionally, the regulator has an internal short-circuit protection feature that prevents damage during fault conditions.

Engineers will appreciate the regulator's low noise performance, which makes it suitable for noise-sensitive applications such as precision instrumentation, high-end audio equipment, and RF supply lines. The device's excellent transient response also allows it to maintain stable output voltage despite rapid changes in load, which is critical for maintaining the performance of sensitive electronic systems.

For design flexibility, the ADP7112ACBZ-1.2-R7 includes an enable pin that allows the regulator to be turned off when not in use, reducing power consumption to nearly zero and further conserving energy in applications where intermittent operation is required.

In conclusion, the ADP7112ACBZ-1.2-R7 from Analog Devices Inc. is a highly reliable and efficient solution for applications requiring a fixed 1.2V output with low dropout, low noise, and robust protection features. Its compact form factor and high level of integration make it an ideal choice for a wide range of industrial, commercial, and consumer electronic products.
