ADP7118AUJZ-3.3-R7 - Analog Devices Inc.

The ADP7118AUJZ-3.3-R7 is a high-performance, CMOS linear regulator offering a very low dropout voltage and low noise, with a fixed output voltage of 3.3V. Manufactured by Analog Devices Inc., this component is designed to provide precision voltage regulation while maintaining a high power supply rejection ratio (PSRR), making it ideal for sensitive analog and RF applications.

Key Features:

• Fixed Output Voltage: 3.3V with high accuracy.
• Low Dropout Voltage: Provides efficient operation even with very low input-to-output voltage differentials.
• High PSRR: Excellent power supply rejection ratio (>70 dB at 10 kHz) ensures stable voltage in the presence of supply noise.
• Low Noise Output: Suitable for RF and other noise-sensitive applications.
• Maximum Output Current: Capable of delivering up to 200 mA of output current.
• Wide Operating Temperature Range: -40°C to +125°C, suitable for industrial environments.

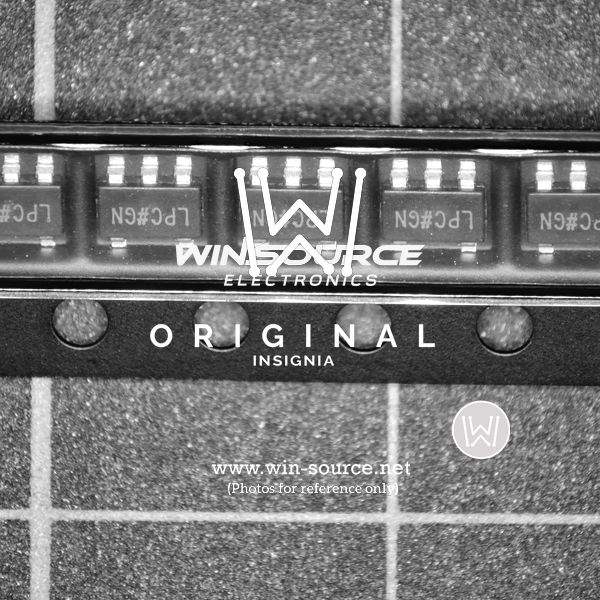

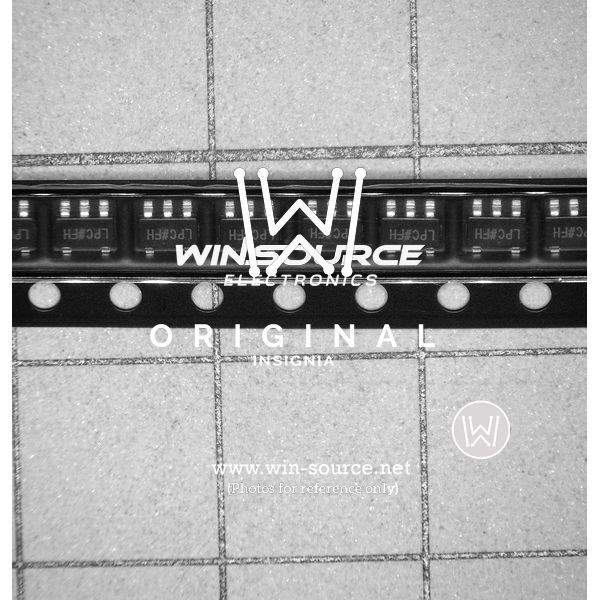

• Small Package: Available in a compact, 5-lead TSOT package.

Applications:

• Portable and battery-powered equipment
• High-performance analog circuits
• Data acquisition systems
• Medical devices
• Communications infrastructure
• RF applications

The ADP7118AUJZ-3.3-R7 is part of Analog Devices Inc.'s extensive range of linear regulators, known for their reliability and performance in demanding applications. This regulator's combination of low dropout voltage, low noise, and high PSRR makes it an excellent choice for maintaining a clean and stable voltage supply. Whether it's for precision instrumentation or sensitive communication equipment, the ADP7118AUJZ-3.3-R7 provides the consistency and quality expected from a leading semiconductor manufacturer like Analog Devices Inc.

For detailed specifications, application notes, and additional resources, designers and engineers are encouraged to visit the Analog Devices Inc. website or contact their support team for technical assistance.
