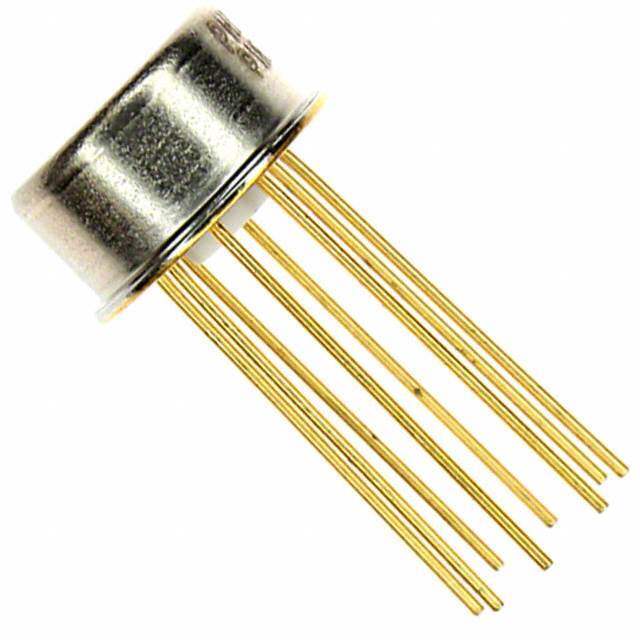

The AMP03BJ is a precision, high-speed instrumentation amplifier designed by Analog Devices Inc., a leader in the manufacture of high-performance analog technology. This particular model is renowned for its exceptional accuracy and versatility, making it an ideal choice for a wide range of applications including medical instrumentation, industrial process controls, and precision data systems.

Key Features

• High Gain Accuracy: The AMP03BJ boasts a gain accuracy of ±0.02% max, ensuring precise amplification of input signals without significant deviation.
• Low Nonlinearity: With a nonlinearity of only 0.001% max at G = 1, the AMP03BJ provides a near-perfect linear response, critical for applications requiring high fidelity signal processing.
• Wide Gain Range: Users can configure the device for a wide range of gains without external resistors, allowing for flexibility and ease of use in various configurations.
• Fast Settling Time: The amplifier has a fast settling time to 0.01% of 1 µs, making it suitable for high-speed systems that require quick response times.

Performance Specifications

The AMP03BJ operates with a minimum supply voltage of ±5 V and a maximum of ±15 V, providing a broad power supply range to accommodate different system requirements. Its high input impedance minimizes loading on the signal source, and the low output impedance makes it capable of driving heavy loads.

Applications

This amplifier is highly adaptable and can be used in a variety of settings, including:

• Strain gauge amplifiers
• Thermocouple amplifiers
• Industrial process controls
• Precision data acquisition systems
• Medical instrumentation

Reliability and Quality

Analog Devices Inc. ensures that the AMP03BJ meets the highest quality and reliability standards. Each unit undergoes rigorous testing to guarantee performance even in the most demanding conditions. With its robust design and superior precision, the AMP03BJ from Analog Devices Inc. stands out as a top-tier component for professionals seeking accuracy and reliability in their electronic designs.
