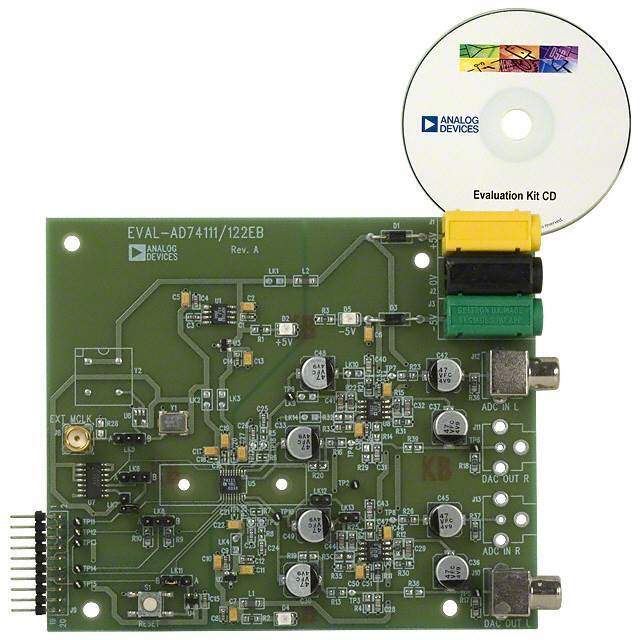

The EVAL-AD74111EBZ from Analog Devices Inc. is a comprehensive evaluation board designed specifically for the AD74111, a low power, single-channel codec with an integrated sigma-delta analog-to-digital converter (ADC) and digital-to-analog converter (DAC). This evaluation board enables designers and engineers to thoroughly test and assess the capabilities of the AD74111 codec in various signal processing applications.

Key Features

• Integrated Codec: The AD74111 is a versatile codec offering both ADC and DAC functionalities, making it suitable for a wide array of audio applications.
• Flexible Sampling Rates: The device supports multiple sampling rates, ensuring compatibility with different audio standards and requirements.
• Low Power Consumption: Designed with power-sensitive applications in mind, the AD74111 operates with minimal power usage without compromising performance.
• Easy-to-Use Interface: The EVAL-AD74111EBZ provides a user-friendly interface for quick setup and testing, accelerating the development process.

Applications

The EVAL-AD74111EBZ is ideal for evaluating the AD74111 codec in a variety of applications, including:

• Portable and handheld audio devices
• Voice and speech processing systems
• Telecommunication devices
• Industrial control systems

Technical Specifications

The EVAL-AD74111EBZ offers the following technical specifications:

• ADC Resolution: High-resolution sigma-delta ADC
• DAC Resolution: High-fidelity sigma-delta DAC
• Input/Output: Multiple input and output options for flexible signal routing
• Power Supply: Single power supply operation for simplified design

Support and Documentation

Analog Devices Inc. provides extensive support and documentation for the EVAL-AD74111EBZ, including detailed datasheets, user guides, and technical support resources to facilitate a smooth evaluation process.

Ordering Information

The EVAL-AD74111EBZ evaluation board can be ordered directly from Analog Devices Inc. or through authorized distributors. For additional information and to place an order, please visit the Analog Devices website or contact your local sales representative.
