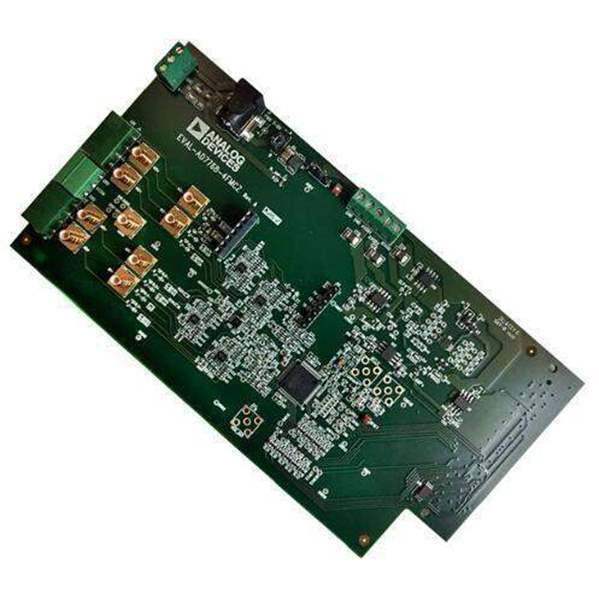

EVAL-AD7768-4FMCZAnalog Devices Inc.
Same model may have multiple batches, images only for reference.

EVAL-AD7768-4FMCZ

Part No EVAL-AD7768-4FMCZ
Manufacturer Analog Devices Inc.
Catalog Evaluation Boards - Analog to Digital Converters (ADCs)
Description EVAL BOARD FOR AD7768-4
Datasheet
EVAL-AD7768-4FMCZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Analog Devices Inc.
Category Development Boards, Kits, Programmers Evaluation Boards Analog to Digital Converters (ADCs) Evaluation Boards
Packaging  Box
Part Status Active
Number of A/D Converters 4
Number of Bits 24
Sampling Rate (Per Second) Serial, SPI
Input Range ±VREF
Power (Typ) @ Conditions 345mW @ 256kSPS
Utilized IC / Part AD7768-4
Supplied Contents Board(s)
Win Source Part Number WS1303998-EVAL-AD7768-4FMCZ
Ultra Librarian 3D Model Ultra Librarian EVAL-AD7768-4FMCZ CAD Model

Description

AD7768-4 - 24 Bit 256k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
