The HMC245QS16ETR is a high-performance, non-reflective Single Pole Four Throw (SP4T) switch designed and manufactured by Analog Devices Inc., a leader in the field of high-performance analog technology. This switch is part of Analog Devices' Hittite Microwave product line, which is renowned for delivering robust and reliable solutions for a wide range of RF and microwave applications.

Key Features

• Frequency Range: The HMC245QS16ETR operates over a broad frequency range, making it suitable for diverse applications, including cellular infrastructure, wireless systems, and satellite communications.
• High Isolation: The switch offers high isolation between ports, which minimizes signal leakage and ensures signal integrity, a critical factor in maintaining system performance.
• Low Insertion Loss: With its low insertion loss, the HMC245QS16ETR ensures efficient signal transmission, which is vital for maintaining the overall efficiency of the communication system.
• Non-Reflective Design: The non-reflective nature of the switch minimizes signal reflections that can cause interference, thus improving the quality of the transmitted signal.

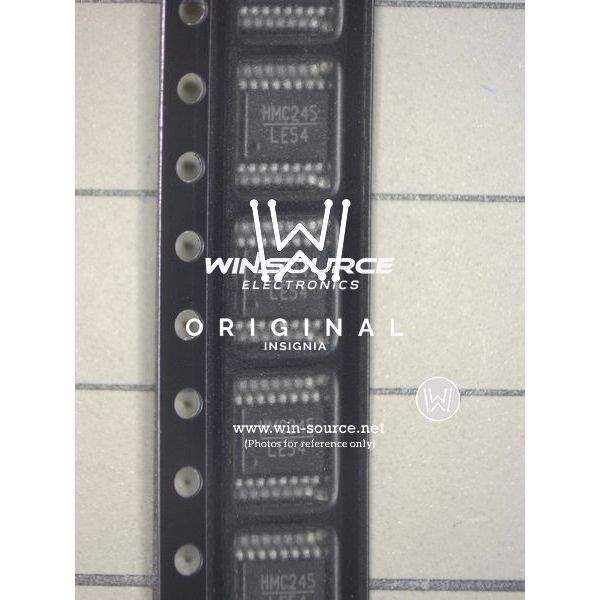

• Surface Mount Package: The switch comes in a compact QS16 surface mount package, which is suitable for automated assembly processes, reducing manufacturing time and costs.
• Positive Control Voltage: It operates with a single positive control voltage, simplifying the control interface and power supply requirements.

Applications

The versatility of the HMC245QS16ETR allows it to be used in a variety of applications. It is particularly well-suited for:

• Wireless infrastructure (GSM, CDMA, LTE)
• Test equipment and sensors
• Satellite communications systems
• Fiber optic systems
• Military and space applications

Quality and Reliability

Analog Devices Inc. is committed to providing high-quality products. The HMC245QS16ETR is manufactured to the highest standards, ensuring reliability and performance consistency. It is designed to meet the rigorous demands of both commercial and military applications, offering durability and longevity for any project.

Ordering Information

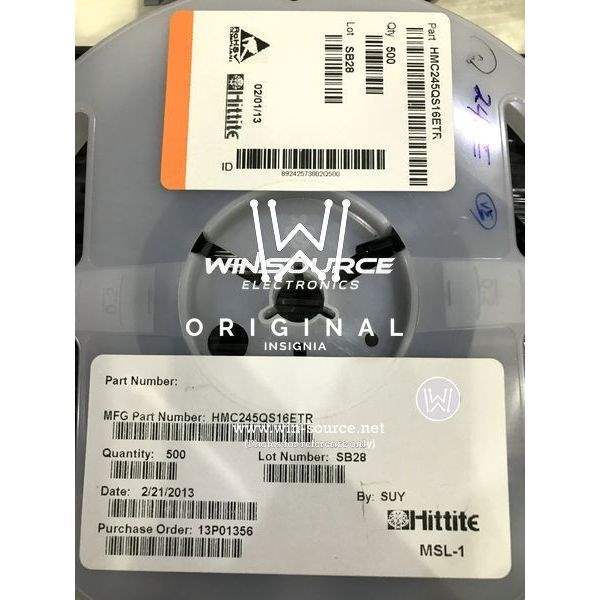

The HMC245QS16ETR is available for order in tape and reel format, making it ready for use in high-volume production environments. For detailed ordering and pricing information, and to request samples, customers should contact Analog Devices Inc. or an authorized distributor.
