Product Overview: LT3032EDE#PBF

The LT3032EDE#PBF is a high-quality, dual-channel, low-noise, low-dropout voltage linear regulator from Analog Devices Inc., designed to provide precision voltage regulation for sensitive electronic components. This regulator features independent positive and negative outputs that are ideal for applications requiring a small, simple, and efficient solution for generating bipolar supplies.

Key Features

• Dual Output Voltages: The LT3032 offers dual ±15V outputs from a single input supply, making it versatile for various applications.
• Low Noise: With its low noise performance, it is well-suited for sensitive RF and audio applications, ensuring minimal interference and signal distortion.
• Low Dropout Voltage: It has a low dropout voltage, which allows for efficient operation even when the input voltage is close to the output voltage, reducing power loss and heat dissipation.
• High Accuracy: The output voltage accuracy is maintained at a high level, ensuring reliable and consistent performance for precision-dependent applications.
• Adjustable Outputs: The output voltages can be set with external resistors, providing flexibility to meet specific design requirements.
• Thermal Protection: The device includes thermal shutdown protection to safeguard against overheating and potential damage to the regulator and the system it powers.
• Stable with Low ESR Ceramic Capacitors: The LT3032 is stable with ceramic capacitors, which reduces the need for larger, more expensive tantalum capacitors.

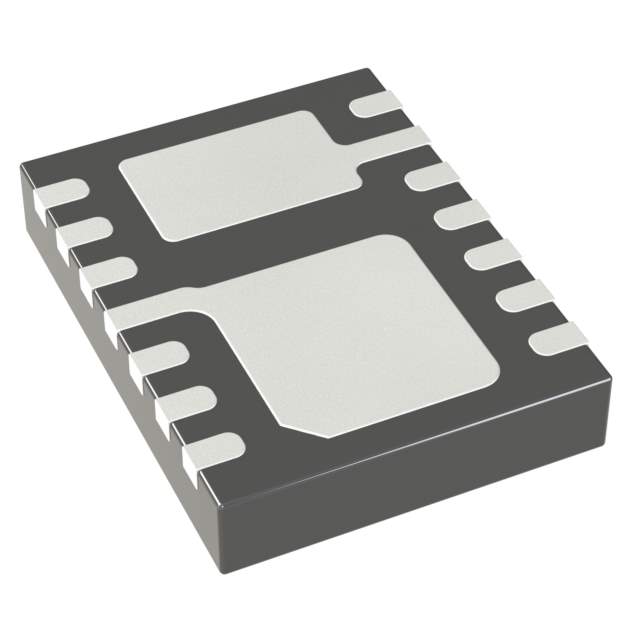

• Package: It comes in a compact 14-lead DFN package, which is suitable for space-constrained applications.

Applications

The LT3032EDE#PBF is ideally suited for a wide range of applications, including:

• Portable battery-powered devices
• Instrumentation
• RF and audio equipment
• Medical devices
• Industrial controls
• Automotive electronics

With its combination of dual outputs, low noise, and high accuracy, the LT3032EDE#PBF from Analog Devices Inc. is an excellent choice for designers looking for a reliable and efficient power management solution.
