Analog Devices Inc. presents the LTC4066EUF-1

The LTC4066EUF-1 is a versatile and highly integrated charging solution from Analog Devices Inc., designed to cater to the modern needs of portable electronics. This multifunctional device is not just a charger; it is a complete power management system that combines a USB-compatible linear charger, a PowerPath controller, an ideal diode, and a full-featured Li-Ion/Polymer battery charger into one compact package.

Key Features:

• USB Compatibility: The LTC4066EUF-1 is designed to interface seamlessly with USB power sources, making it ideal for portable devices that require charging via a USB connection.
• Integrated PowerPath Controller: This feature enables the device to supply power to the load from a USB port or a battery, ensuring uninterrupted operation even when the battery is being charged.
• Li-Ion/Polymer Battery Charger: The device includes a sophisticated charging circuit tailored for lithium-ion or lithium-polymer batteries, offering a safe and efficient way to maintain battery health and longevity.
• Automatic Load Prioritization: The LTC4066EUF-1 smartly prioritizes the system load over battery charging, ensuring that the device remains operational even under limited power conditions.

Applications:

The LTC4066EUF-1 is particularly well-suited for a wide range of portable applications, including:

• Smartphones and PDAs
• Digital Cameras
• Portable Media Players
• Handheld Instruments
• GPS Devices

Technical Specifications:

• Input Voltage Range: 4.25V to 5.5V
• Programmable Charge Current: Up to 1A
• Thermal Regulation for Optimal Charging Rate
• Automatic Recharge Feature
• Charge Status and Fault Condition Indicators

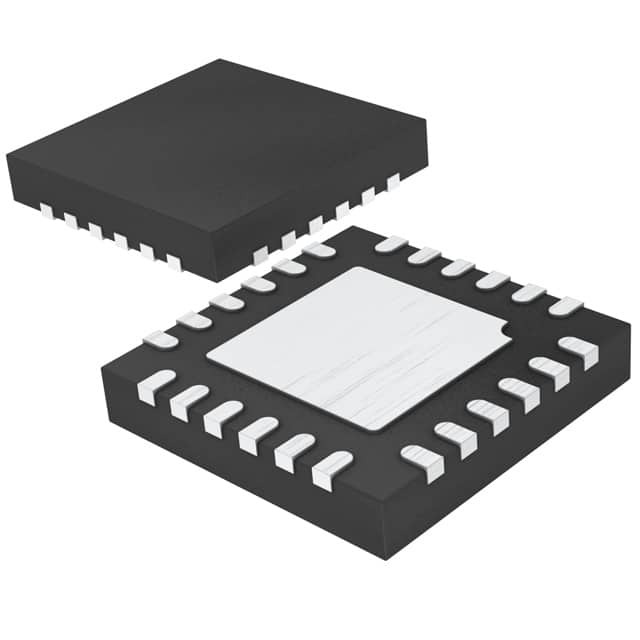

• Thermally Enhanced 24-Lead QFN Package

The LTC4066EUF-1 is a testament to Analog Devices Inc.'s commitment to providing innovative, high-performance integrated circuits that solve the power management challenges of today's sophisticated electronic devices. With its compact form factor and comprehensive feature set, the LTC4066EUF-1 is an excellent choice for designers looking to optimize their power management systems with a reliable, single-chip solution.
