Analog Devices Inc. LTC6409HUDB#TRMPBF Overview

The LTC6409HUDB#TRMPBF is a high-speed, low distortion, differential amplifier manufactured by Analog Devices Inc., a leader in high-performance analog technology. This product is designed to cater to a wide array of applications that require precise signal amplification, such as high-speed data acquisition systems, differential signal processing, and driving high-performance ADCs.

Key Features

• Wide Bandwidth: The LTC6409HUDB#TRMPBF offers an impressive bandwidth of 10GHz, making it suitable for high-frequency signal processing.
• Low Distortion: With its low harmonic distortion, the amplifier ensures signal fidelity, which is critical in applications such as medical imaging and instrumentation.
• High Linearity: The device provides excellent linearity, which is essential for maintaining the integrity of the amplified signal.
• Adjustable Gain: The gain of the amplifier can be adjusted using external resistors, providing flexibility to match the requirements of various applications.
• Single-Ended to Differential Conversion: It is capable of converting single-ended inputs to differential outputs, which is beneficial for reducing noise and improving signal integrity in long cable runs.

Applications

• Data Acquisition Systems
• Communications Infrastructure
• Medical Imaging Equipment
• A/D Converter Driving
• Professional Video Electronics

Reliability and Packaging

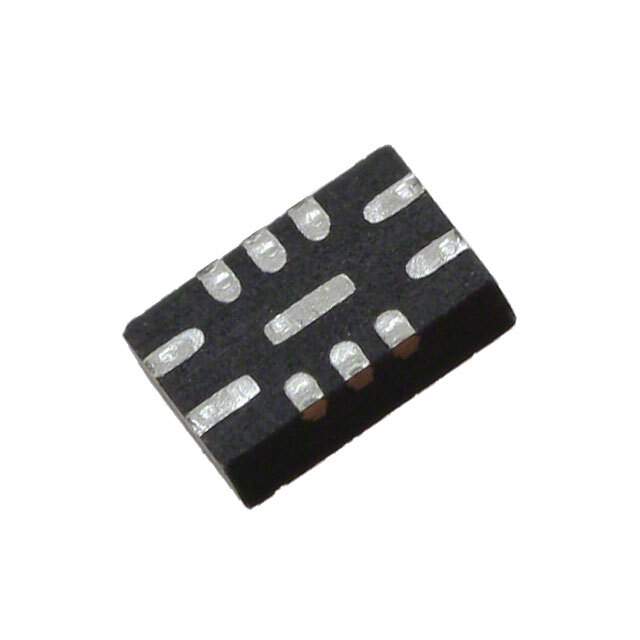

The LTC6409HUDB#TRMPBF is packaged in a compact, 16-lead QFN package, which is designed for space-constrained applications. The part number suffix 'TRMPBF' indicates that the device is provided in tape and reel packaging, suitable for automated assembly processes, and 'PBF' denotes lead-free, RoHS-compliant manufacturing, which is important for environmentally conscious production.

With its robust design and high-speed performance, the LTC6409HUDB#TRMPBF from Analog Devices Inc. is an ideal choice for engineers looking to enhance the performance of their high-speed signal processing systems while ensuring signal integrity and reliability.
