Product Overview: LTC7124EUDD#PBF

The LTC7124EUDD#PBF is a high-performance, dual-channel, synchronous step-down switching regulator from Analog Devices Inc., a leading manufacturer of precision high-performance integrated circuits used in analog and digital signal processing applications. This advanced power management IC is designed to accommodate a wide input voltage range, making it suitable for a variety of applications including telecommunications, industrial systems, and automotive power supplies.

Key Features

• Wide Input Voltage Range: The LTC7124EUDD#PBF operates from an input voltage range of 4.5V to 20V, which allows it to support a broad spectrum of power sources.
• Dual Channel Output: With two channels, this regulator can provide two independent output voltages, which can be set from 0.6V to 99% of VIN, catering to systems that require multiple regulated voltages.
• High Efficiency: The device features high efficiency and is capable of delivering up to 4A of continuous output current per channel, reducing power loss and improving system reliability.
• Fast Transient Response: It boasts a fast transient response, ensuring stable operation during rapid load changes, which is critical for sensitive electronic devices.
• Adjustable Switching Frequency: Users can adjust the switching frequency from 500kHz to 2MHz or synchronize it to an external clock, providing flexibility in optimizing the balance between efficiency and component size.
• Robust Protection Features: The LTC7124EUDD#PBF includes overvoltage, overcurrent, and overtemperature protection, enhancing the safety and durability of the end application.

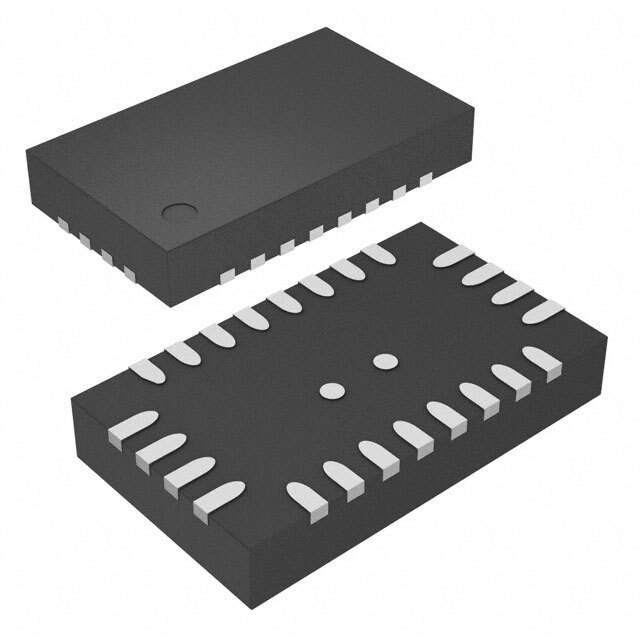

• Compact Package: Housed in a 3mm x 4mm QFN package, it is designed for space-constrained applications, offering a compact power solution without compromising performance.

Applications

The versatility of the LTC7124EUDD#PBF makes it an excellent choice for a wide array of applications. It is particularly well-suited for distributed power systems, automotive electronics, industrial supplies, and anywhere dual independent power rails are required. Its robust feature set ensures reliable performance in the most demanding environments.

By integrating the LTC7124EUDD#PBF into your design, you can rest assured that you are selecting a top-quality power management solution that delivers efficiency, flexibility, and reliability, backed by the renowned expertise of Analog Devices Inc.
