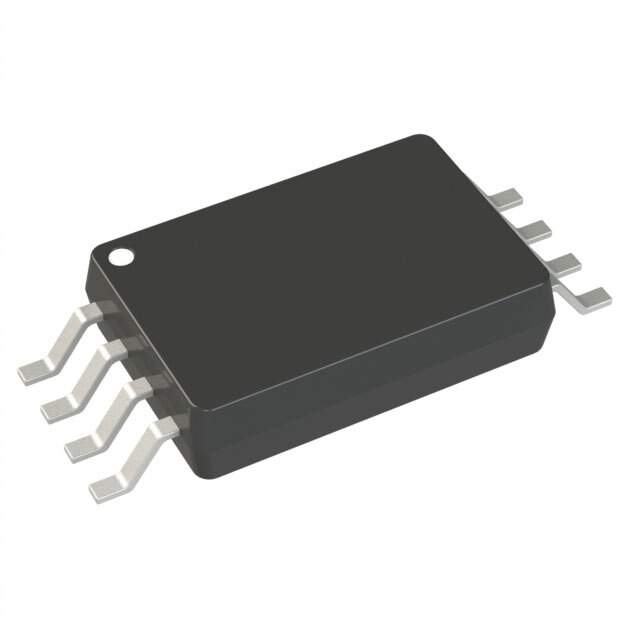

REF195GRU-REEL7

Part No REF195GRU-REEL7
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Reference
Description IC VREF SERIES 5V 8TSSOP
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Reference Type Series
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 5V
Output Current 30mA
Tolerance ±0.2%
Temperature Coefficient 25ppm/°C
Noise - 0.1Hz to 10Hz 50μVp-p
Voltage - Input 5.1 V to 15 V
Operating Supply Current 45μA
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 8-TSSOP
Win Source Part Number 210724-REF195GRU-REEL7
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian REF195GRU-REEL7 CAD Model

Description

Product Overview: REF195GRU-REEL7

The REF195GRU-REEL7 is a high-precision voltage reference component manufactured by Analog Devices Inc., a leading company in the semiconductor industry. This product is specifically designed to offer a stable and precise reference voltage for various applications, including data converters, portable instrumentation, battery-powered devices, and precision power supplies.

Key Features

  • Precision Voltage: The REF195GRU-REEL7 provides a fixed output voltage of 5V with an impressive initial accuracy. This precision ensures reliable performance in critical applications where voltage stability is paramount.
  • Low Temperature Coefficient: It boasts a low temperature coefficient, minimizing voltage variation over a wide temperature range, which is essential for consistent operation under varying environmental conditions.
  • Low Dropout Voltage: The device operates with a low dropout voltage, allowing it to function correctly even when the supply voltage is very close to the output voltage, which is particularly useful in battery-operated devices.
  • High Output Current: Capable of sourcing up to 10mA of output current, the REF195GRU-REEL7 can drive heavy loads, making it versatile for various applications.
  • Stable with Capacitive Loads: This voltage reference is designed to be stable with capacitive loads, ensuring reliable operation even when connected to components with varying capacitance.

Package and Quality

The REF195GRU-REEL7 is available in a TSSOP (Thin Shrink Small Outline Package) form factor, which is suitable for space-constrained applications. The REEL7 suffix indicates that this product is provided in a tape and reel packaging, which is ideal for automated manufacturing processes, ensuring efficient handling and placement during PCB assembly.

Applications

With its high precision and stability, the REF195GRU-REEL7 is an excellent choice for a variety of applications, including:

  • High-resolution analog-to-digital converters (ADCs)
  • Digital-to-analog converters (DACs)
  • Portable instrumentation
  • Battery-powered devices
  • Precision power supplies

Overall, the REF195GRU-REEL7 from Analog Devices Inc. represents a blend of performance, reliability, and versatility, making it a go-to voltage reference for engineers and designers who require a stable power source for their electronic systems.
