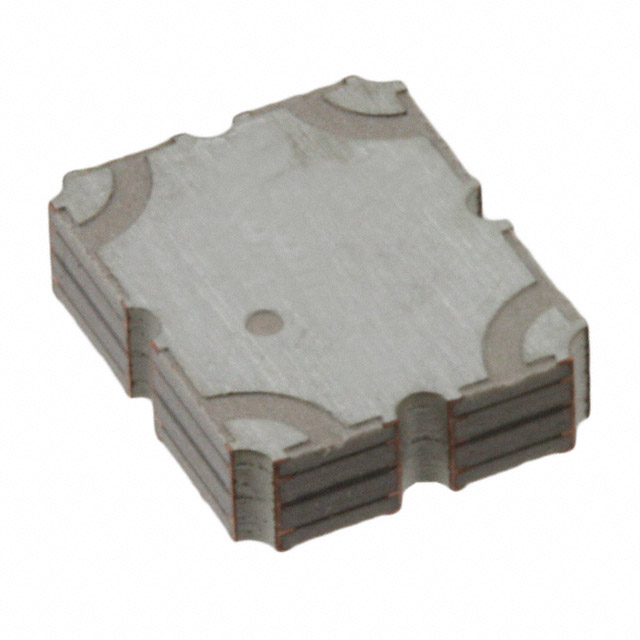

X3C26P1-03S Anaren
Same model may have multiple batches, images only for reference.

X3C26P1-03S

Part No X3C26P1-03S
Manufacturer Anaren
Catalog RF Directional Coupler
Description Hybrid Coupler 3 dB, 90
Datasheet
X3C26P1-03S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Series Xinger III
Packaging Reel - TR
Coupler Type Standard
Frequency 2.3GHz ~ 2.9GHz
Coupling Factor 3dB
Applications LTE, WiMAX
Insertion Loss 0.2dB
Power - Max 80W
Isolation 20dB
Return Loss 20.1dB
Package 2520 (6450 Metric)
Manufacturer Package SMD
Win Source Part Number 1280965-X3C26P1-03S
Manufacturer Homepage www.anaren.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name X3C26P1-03S
Introduction Date April 13, 2012
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian X3C26P1-03S CAD Model

Description

The Xinger III series coupler from Anaren is ideal for LTE and WiMAX applications.

  • Power Rating: 80W
  • Frequency Range: 2.3GHz ~ 2.9GHz
  • Coupler Type: Standard
  • Coupling Factor: 3dB
  • Insertion Loss: 0.2dB
  • Isolation: 20dB
  • Return Loss: 20.1dB
  • Package: 2520 (6450 Metric)
  • Packaging: Reel-TR
  • Popularity: Medium
  • Supply and Demand Status: Limited
