Same model may have multiple batches, images only for reference.

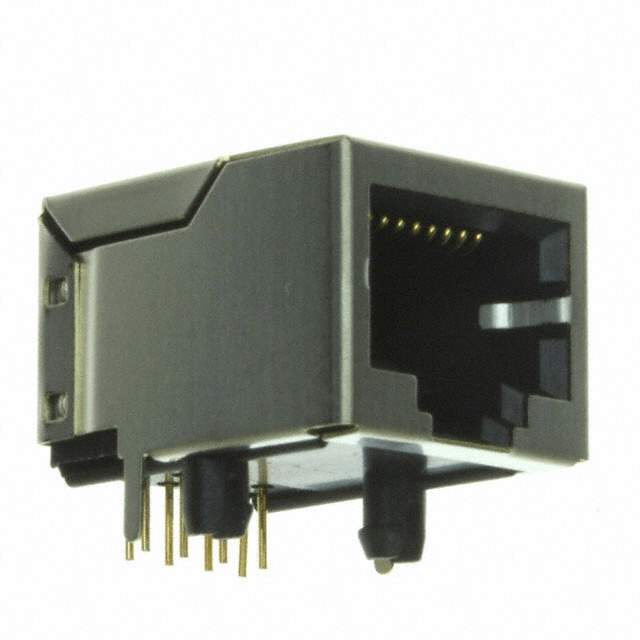

A-2004-2-4-LP/FS-N-R Real Image
Same model may have multiple batches, images only for reference.

A-2004-2-4-LP/FS-N-R

Part No A-2004-2-4-LP/FS-N-R
Manufacturer Assmann WSW Components
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
Datasheet
A-2004-2-4-LP/FS-N-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr Assmann WSW Components
Package Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded
Features Board Lock
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 6.00µin (0.152µm)
Housing Material Polyester
Temperature Range - Operating -40°C ~ 85°C
Base Product Number A-2004
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350147-A-2004-2-4-LP/FS-N-R
Ultra Librarian 3D Model Ultra Librarian A-2004-2-4-LP/FS-N-R CAD Model

Description

The Assmann WSW Components 1350147-A-2004-2-4-LP/FS-N-R modular connector jack is a socket connector with 8p8c (RJ45, Ethernet) and a right angle (90°) orientation.

  • Positions/Contacts: 8p8c (RJ45, Ethernet)
  • Orientation: Right Angle (90°)
  • Feature: Board Lock
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 6.00µin (0.152µm)
  • Shielded: Yes
  • Housing Material: Polyester
  • Rated Voltage: 1.5A
  • Mounting Type: Through Hole
  • Standard Package: 100
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature Range: -40°C to 85°C
  • Mating Cycles: Up to 1500
