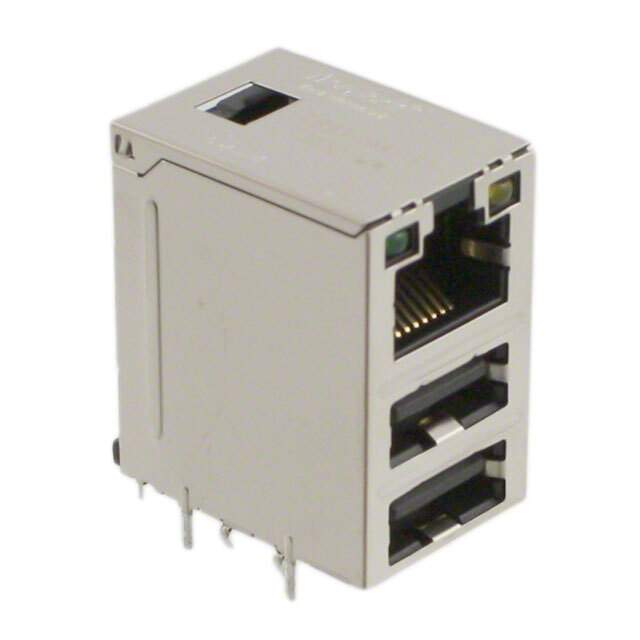

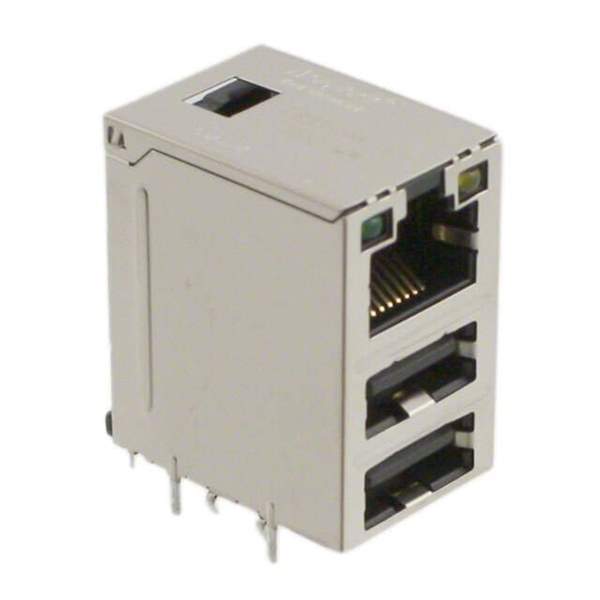

Same model may have multiple batches, images only for reference.

C893-1AX1-E1

Name: C893-1AX1-E1
Brand: Bel Fuse Inc.
SKU: 1016260
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	C893-1AX1-E1
Manufacturer	Bel Fuse Inc.
Catalog	Modular Connectors
Description	CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45 with USB A, DualThrough Hole 10/100 Base-T
Datasheet	C893-1AX1-E1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr	Bel Fuse Inc.
Series	MagJack®
Package	Tray
Connector Type	RJ45 with USB A, Dual
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-T
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	1.237" (31.42mm)
LED Color	Green - Yellow
Number of Cores per Jack	5
Shielding	Shielded
Features	Board Lock
Tab Direction	Up
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Base Product Number	C893-1AX1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	380-1091-ND,507-C893-1AX1-E1,380-1091,C8931AX1E1
Standard Package	35
Win Source Part Number	1016260-C893-1AX1-E1
Ultra Librarian 3D Model	Ultra Librarian C893-1AX1-E1 CAD Model

Alternative Products

Description

The MagJack® RJ45 connector with USB A and dual connector type is a highly efficient connector that features board lock and shielded housing material made of Polybutylene Terephthalate (PBT).

Orientation: 90° angle (right)
Port: 1
Applications: 10/100 Base-T (maximum)
Contact Finish: Gold with 50.0µin (1.27µm) thickness
Shielding Material: Copper alloy
Cores per Jack: 5
LED Color: Green-yellow
Package: Tray
Height above Board: 1.237" (31.42mm)
Mounting Type: Through-hole
Tab Direction: Up
Standard Package: 35
REACH: REACH unaffected
HTSUS code: 8536.69.4040
Manufacturer: Bel Fuse Inc.
