Same model may have multiple batches, images only for reference.

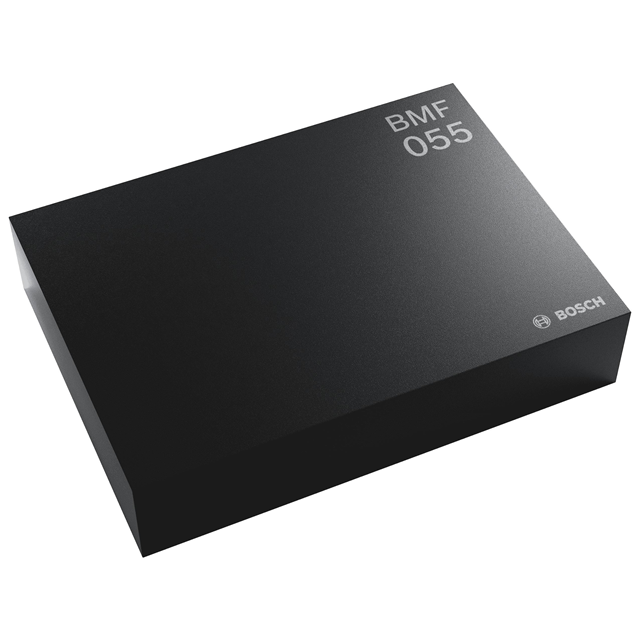

BMF055 Real Image
Same model may have multiple batches, images only for reference.

BMF055

Part No BMF055
Manufacturer Bosch Sensortec
Catalog Motion Sensors - IMU (Inertial Measurement Units)
Description IMU ACCEL/GYRO/MAG VOLTAGE 28LGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Features Accelerometer, Gyroscope, Magnetometer, 9 Axis Sensor I²C, UART Output
Manufacturer Bosch Sensortec
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 28-TFLGA Module
Case / Package 28-LGA (5.2x3.8)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 828-1059-2, 828-1059-1, 828-1059-6, 0273.141.235-1NV
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864442-BMF055
Ultra Librarian 3D Model Ultra Librarian BMF055 CAD Model

Description

The Bosch Sensortec BMF055 is a 9-axis sensor module that includes an accelerometer, gyroscope, and magnetometer.

  • Mounting Type: Surface Mount Device
  • Status: Discontinued @ Digi-Key
  • Temperature Range: -40°C to 85°C
  • Output Interfaces: I²C and UART
  • Package: 28-TFLGA
  • Packaging: Reel
  • Quantity per Package: 4000
