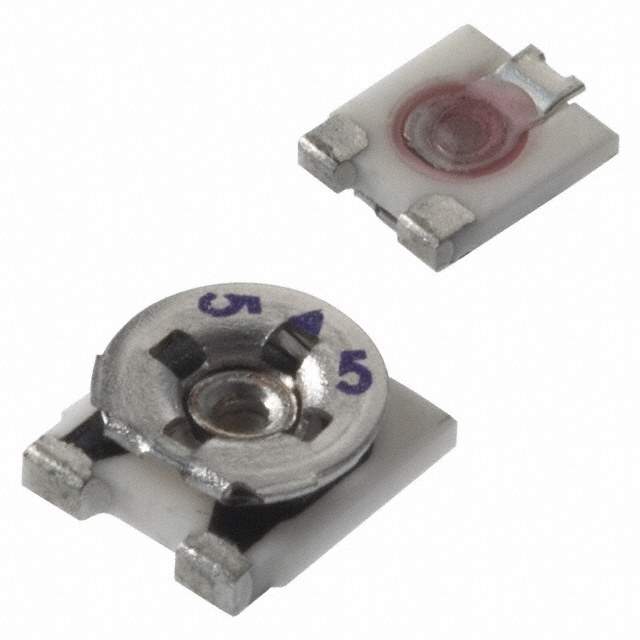

3364X-1-503E Real Image
Same model may have multiple batches, images only for reference.

3364X-1-503E

Part No 3364X-1-503E
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description TRIMMER 50K OHM 0.2W J LEAD TOP  /  50 kOhms 0.2W, 1/5W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet
3364X-1-503E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3364 - Open Frame
Package Tape & Reel
Product Status Obsolete
Resistance 50 kOhms
Power (Watts) 0.2W, 1/5W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm)
Base Product Number 3364X
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 3364X-503E,3364X-503ECT,3364X1503E,3364X-503EDKR,3364X-503ETR
Standard Package 1,000
Win Source Part Number 1164009-3364X-1-503E
Ultra Librarian 3D Model Ultra Librarian 3364X-1-503E CAD Model

Description

The Trimpot® 3364 - Open Frame potentiometer is a variable resistor designed by Bourns Inc.

  • Termination Style: J Lead
  • Mounting: SMD (SMT)
  • Tolerance: ±25%
  • Temperature Coefficient: ±250ppm/°C
  • Resistive Material: Cermet
  • Resistance: 50 kOhms
  • Dimension: 0.177" x 0.150" Face (4.50mm x 3.80mm)
  • Power Rating: 0.2W, 1/5W
  • Number of Turns: 1
  • Adjustment Type: Top Adjustment
  • Package: Tape & Reel
  • Status: Obsolete
  • ECCN: EAR99
