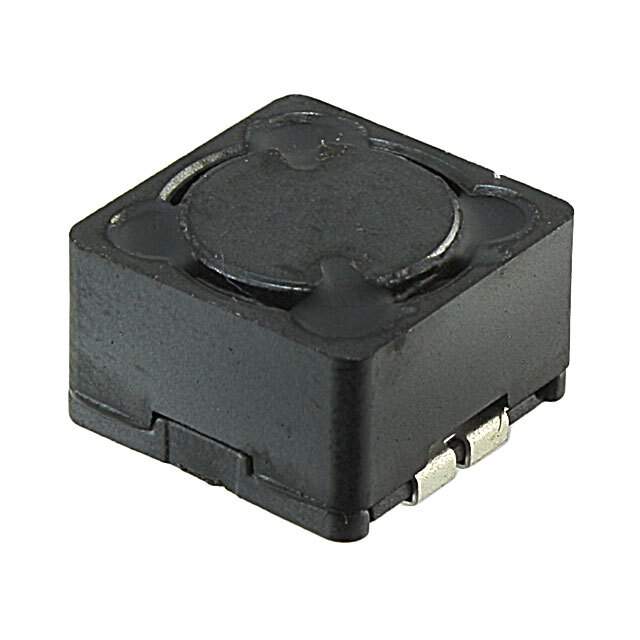

SRR1208-560YL Real Image
Same model may have multiple batches, images only for reference.

SRR1208-560YL

Part No SRR1208-560YL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1208-560YL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1208
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±15%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 2.8A
Shielding Shielded
DC Resistance (DCR) 110mOhm Max
Q @ Freq 23 @ 2.52MHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.335" (8.50mm)
Base Product Number SRR1208
Other Names SRR1208-560YLCT,-SRR1208-560YLCT,SRR1208560YL,-SRR1208-560YLTR,-SRR1208-560YL,SRR1208-560YLTR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273506-SRR1208-560YL
Ultra Librarian 3D Model Ultra Librarian SRR1208-560YL CAD Model

Description

The SRR1208-560YL is a wirewound drum core inductor with a shielding feature from Bourns Inc.

  • Inductance: 56 µH
  • Tolerance: ±15%
  • Core Material: ferrite
  • DC Resistance (DCR): 110 mOhm max
  • Mounting: surface mount technology (SMT)
  • Package/Case: nonstandard
  • Operating Temperature: -40°C to 125°C
  • Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
