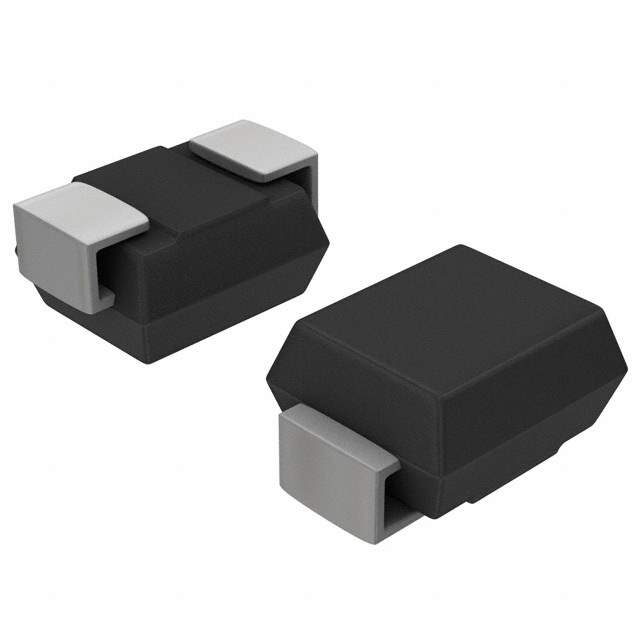

The CD214B-B120 is a surface-mount Schottky Barrier Rectifier manufactured by Bourns. Schottky rectifiers are characterized by their low forward voltage drop and fast switching speed, making them suitable for applications requiring efficient rectification and high-frequency operation. This particular model is part of the SMA (Surface Mount A) package family.

Applications

• DC-DC Converters: Used as a rectifier in DC-DC converters to efficiently convert voltage levels.
• Switching Power Supplies: Employed in switching power supplies to rectify the AC input and provide a stable DC output.
• Reverse Polarity Protection: Prevents damage to circuits due to accidental reverse polarity connection.
• Free-Wheeling Diode: Used in inductive circuits to protect transistors from voltage spikes during switching.

Features

• Low Forward Voltage Drop: Minimizes power loss and improves efficiency (typically around 0.7V or less).
• High Surge Current Capability: Withstands large current surges without damage.
• Fast Switching Speed: Enables efficient operation in high-frequency circuits.
• Surface Mount Package (SMA): Allows for automated assembly and compact circuit design.

Benefits

• Improved Efficiency: Reduces power consumption in rectification applications.
• Enhanced Circuit Performance: Enables faster switching speeds and improved transient response.
• Compact Design: Facilitates smaller and more densely packed circuit boards.
• Reliable Operation: Provides consistent performance under various operating conditions.

Additional Details

The CD214B-B120 has a repetitive peak reverse voltage rating of 20V and a forward current rating that varies based on operating conditions. The datasheet will specify the exact current rating, surge current capability, and thermal characteristics. Schottky rectifiers like the CD214B-B120 are crucial components in modern electronic devices that demand high efficiency and fast switching speeds. Always refer to the Bourns datasheet for precise specifications before using this rectifier in your designs.
