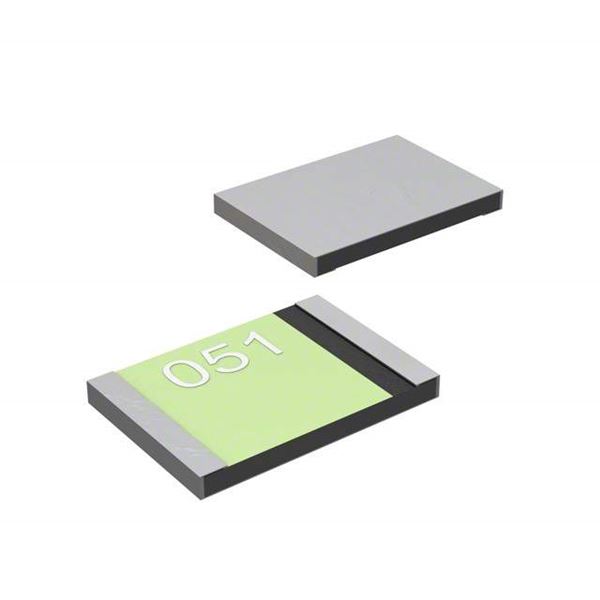

MF-MSMD050-2 Bourns Inc.
Same model may have multiple batches, images only for reference.

MF-MSMD050-2

Part No MF-MSMD050-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE .50A HOLD SMD
Datasheet
MF-MSMD050-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 150ms
Resistance - Initial (Ri) (Min) 150 mOhm
Resistance - Post Trip (R1) (Max) 1 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.020" W (4.55mm x 0.50mm)
Thickness (Max) 0.134" (3.41mm)
Approvals CSA, TUV, UR
Win Source Part Number 098986-MF-MSMD050-2
Ultra Librarian 3D Model Ultra Librarian MF-MSMD050-2 CAD Model

Description

The Bourns Inc. MF-MSMD050-2 is a polymeric type circuit protection component with a maximum voltage of 15V and a maximum current of 100A.

  • Mounting: SMD (SMT)
  • Thickness: 0.134" (3.41mm)
  • Current Hold (Ih) (max): 500mA
  • Current Trip (It): 1A
  • Time to Trip: 150ms
  • Approvals: CSA, TUV, and UR
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.179" L x 0.020" W (4.55mm x 0.50mm)
  • Resistance - Initial (Ri) (min): 150 mOhm
  • Resistance - Post trip (R1) (max): 1 Ohm
  • Resistance - 25°C (typ): not specified
  • Status: obsolete (EOL)
