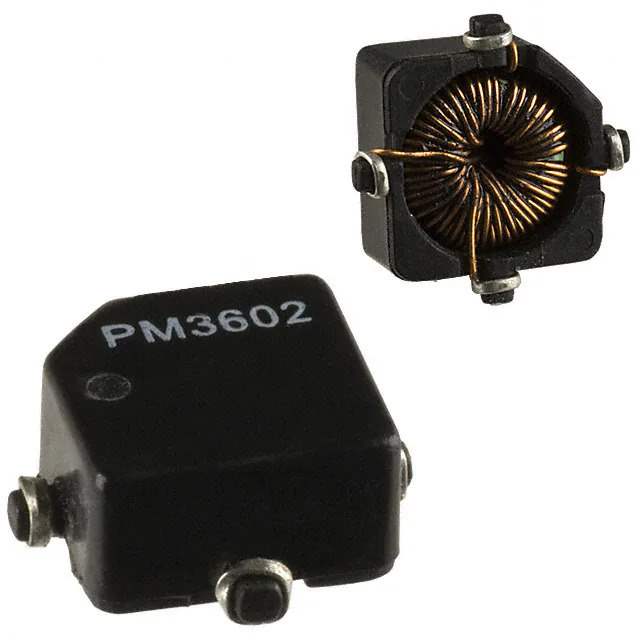

PM3602-50-RC

Name: PM3602-50-RC
Brand: Bourns Inc.
SKU: 656103
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PM3602-50-RC
Manufacturer	Bourns Inc.
Catalog	Arrays, Signal Transformers
Description	INDUCT ARRAY 2 COIL 50UH SMD
Datasheet	PM3602-50-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Arrays, Signal Transformers
Mfr	Bourns Inc.
Series	PM3600
Package	Tape & Reel
Product Status	Active
Number of Coils	2
Inductance - Connected In Parallel	50 µH
Inductance - Connected In Series	200 µH
Tolerance	±20%
Current Rating - Parallel	780 mA
Current Rating - Series	380 mA
DC Resistance (DCR) - Parallel	220mOhm Max
DC Resistance (DCR) - Series	880mOhm Max
Shielding	Unshielded
Temperature Range - Operating	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.452" L x 0.354" W (11.48mm x 8.99mm)
Height	0.225" (5.72mm)
Base Product Number	PM3602
Standard Package	400 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
California Prop 65	Warning Information
Win Source Part Number	656103-PM3602-50-RC
Ultra Librarian 3D Model	Ultra Librarian PM3602-50-RC CAD Model

Description

The PM3602-50-RC is an array of signal transformers from Bourns Inc.

Coils: Two
Inductance (Series): 200 µH
Inductance (Parallel): 50 µH
Shielded: Unshielded
Package: Nonstandard
Mounting: Surface Mount
Packaging: Tape and Reel
Size: 0.452" length x 0.354" width (11.48mm x 8.99mm)
Height: 0.225" (5.72mm)
Tolerance: ±20%
Current Rating (Series): 380 mA
Current Rating (Parallel): 780 mA
DC Resistance (DCR) Series: 880mOhm max
DC Resistance (DCR) Parallel: 220mOhm max
