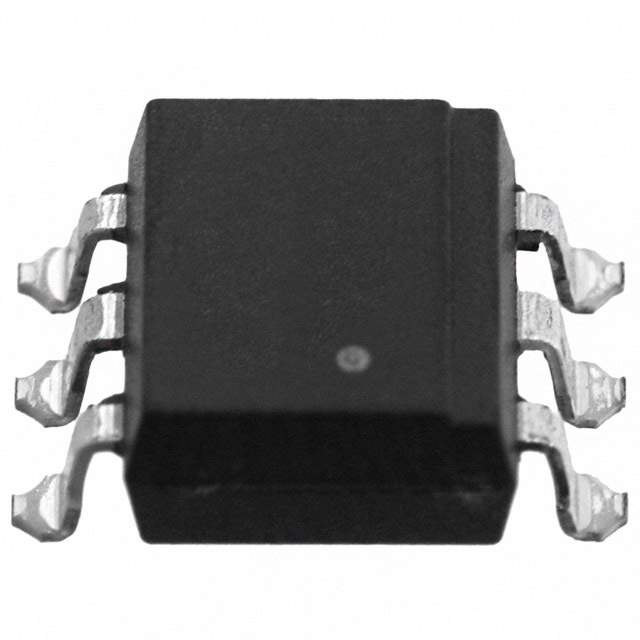

4N35-560E Real Image
Same model may have multiple batches, images only for reference.

4N35-560E

Part No 4N35-560E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.55KV TRANS W/BASE 6SMD
Datasheet
4N35-560E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3550Vrms
Minimum DC Current Transfer Ratio 100% @ 10mA
Rise and Fall Time 3μs, 3μs
Input Type DC
Maximum Output Voltage 30V
Channel Output Current 100mA
Forward Voltage 1.2V
Continuous forward current- Max 60mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 075844-4N35-560E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4N35-560E CAD Model

Description

Overview

The 4N35-560E optocoupler offers superior signal isolation with a robust phototransistor output. It is crafted for applications that demand accuracy and precision alongside electrical insulation.

Features and Benefits

  • Enhanced Performance: Provides high-speed signal transmission.
  • Versatile Operation: Suitable for a wide variety of uses.
  • Long-Term Durability: Ensures reliable operation over time.

Applications and Projects

  • High-Speed Data Communication
  • Medical Devices
  • Telecommunications Equipment
  • Embedded System Protection
