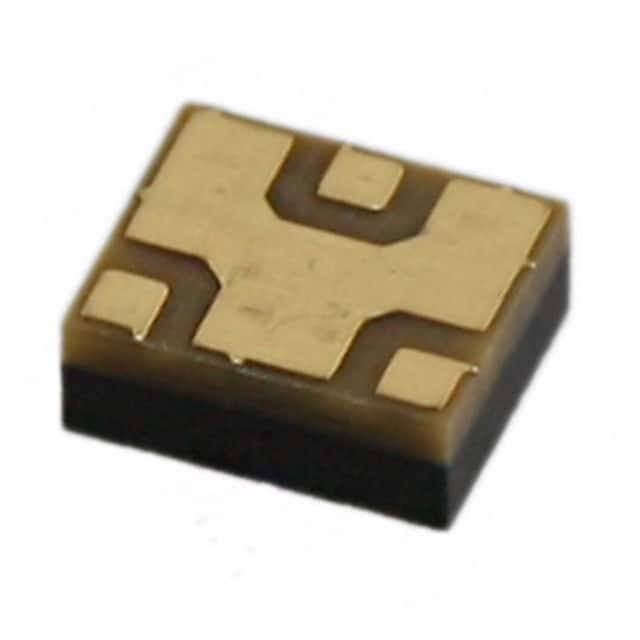

Same model may have multiple batches, images only for reference.
ACMD-7612-BLKG
Same model may have multiple batches, images only for reference.

ACMD-7612-BLKG

Part No ACMD-7612-BLKG
Manufacturer Broadcom Limited
Catalog RF Multiplexers
Description RF DUPLEXER 1.95GHZ/2.14GHZ 3CSP / RF Duplexer 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz 3-CSP
Datasheet
ACMD-7612-BLKG Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Multiplexers
Mfr Broadcom Limited
Package Bag
Product Status Obsolete
Type Duplexer
Frequency Bands (Low / High) 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz
Low Band Attenuation (min / max dB) 53.00dB / -
High Band Attenuation (min / max dB) 41.00dB / -
Return Loss (Low Band / High Band) 20.0dB / 16.0dB
Mounting Type Surface Mount
Package / Case 3-CSP
Base Product Number ACMD-7612
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A991G
HTSUS 8542.39.0001
Win Source Part Number 859269-ACMD-7612-BLKG
Ultra Librarian 3D Model Ultra Librarian ACMD-7612-BLKG CAD Model

Description

The ACMD-7612-BLKG is a surface mount Duplexer designed for use in RF and wireless applications.

  • Low Band Frequency: 1.92GHz to 1.98GHz
  • High Band Frequency: 2.11GHz to 2.17GHz
  • Low Band Attenuation: 53.00dB
  • High Band Attenuation: 41.00dB
  • Low Band Return Loss: 20.0dB
  • High Band Return Loss: 16.0dB
  • Package: 3-CSP
  • Mounting Type: Surface Mount
  • Manufacturer: Broadcom Limited
  • Product Status: Obsolete
  • MSL Level: 3
  • REACH Regulations: Unaffected
