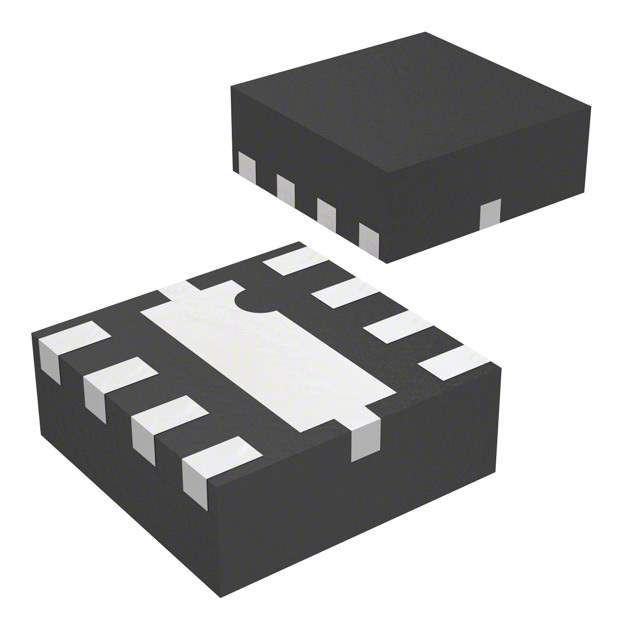

ATF-501P8-BLK Real Image
Same model may have multiple batches, images only for reference.

ATF-501P8-BLK

Part No ATF-501P8-BLK
Manufacturer Broadcom Limited
Catalog Transistors - FETs, MOSFETs - RF
Description FET RF 7V 2GHZ 8LPCC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features RF Mosfet E-pHEMT 4.5 V 280 mA 2GHz 15dB 29dBm 8-LPCC (2x2)
Manufacturer Broadcom Limited
Package Bulk
Part Status Obsolete
Package 8-WFDFN Exposed Pad
Case / Package 8-LPCC (2x2)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
Other Part Number 516-2690, ATF-501P8-BLK-ND, ATF501P8BLK, Q2348592B
Quantity per package 100
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 862322-ATF-501P8-BLK
Ultra Librarian 3D Model Ultra Librarian ATF-501P8-BLK CAD Model

Description

The Broadcom Limited 862322-ATF-501P8-BLK is a RF Mosfet E-pHEMT designed for high-performance applications.

  • Voltage Rating: 4.5V
  • Current Rating: 280mA
  • Frequency Range: 2GHz
  • Gain: 15dB
  • Power Output: 29dBm
  • Package Type: 8-LPCC (2x2)
  • Status: Obsolete
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Package Quantity: 100 units
  • REACH: Unaffected
