131-3701-201

Part No 131-3701-201
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)

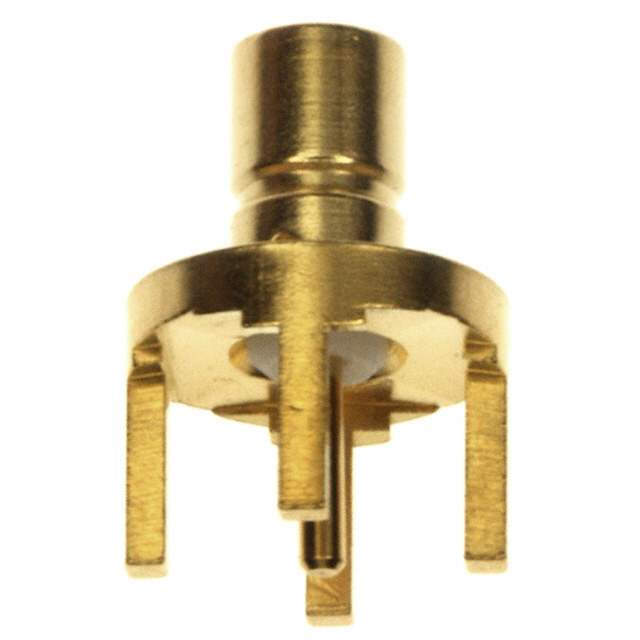

Description CONN SMB JACK STR 50 OHM PCB
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Status Active
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Through Hole
Fastening Type Snap-On
Maximum Input Frequency 4GHz
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 165°C
Center Contact Material Brass
Voltage Rating 335V
Mating Cycles 500
Win Source Part Number 197287-131-3701-201
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 131-3701-201 CAD Model

Description

Description

This component is a versatile electronic connector part known for its reliability and efficiency. Suitable for a wide range of industrial applications, the 131-3701-201 ensures secure connections with minimal electrical interference.
