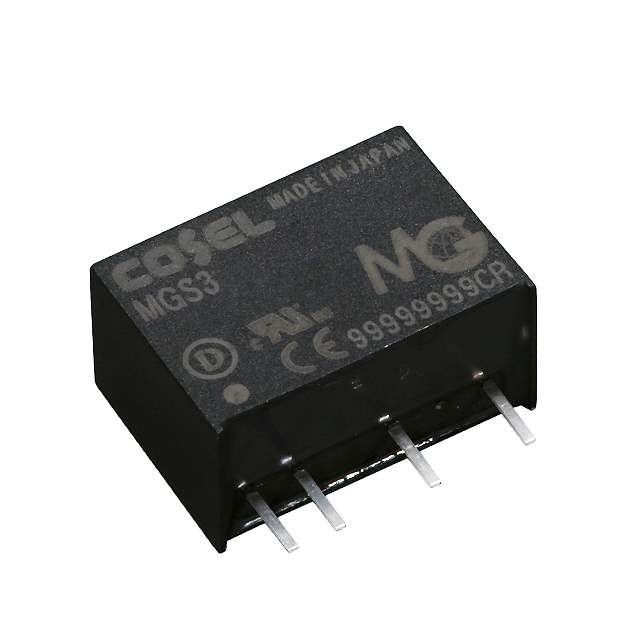

MGS32405 Real Image
Same model may have multiple batches, images only for reference.

MGS32405

Part No MGS32405
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 600mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGS (3W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337767-MGS32405
Ultra Librarian 3D Model Ultra Librarian MGS32405 CAD Model

Description

The Cosel USA MGS32405 is a 3W isolated module power supply designed for use in board mount DC-DC converters.

  • Features: Over Current Protection
  • Standard Package: 1
  • Voltage - Isolation: 1.5 kV
  • Number of Outputs: 1
  • Current - Output (Max): 600mA
  • Voltage - Output: 5V
  • Efficiency: 82%
  • Mounting Type: Through Hole
  • Package / Case: 4-SIP Module
  • Temperature Range: -40°C to 85°C (With Derating)
  • Applications: ITE (Commercial)
