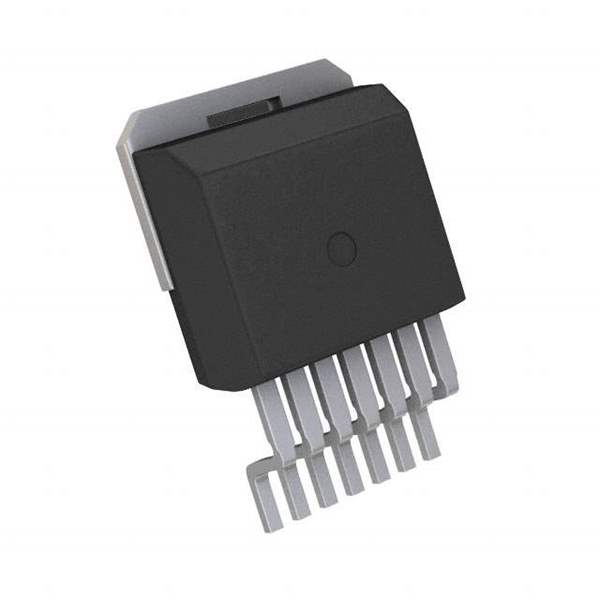

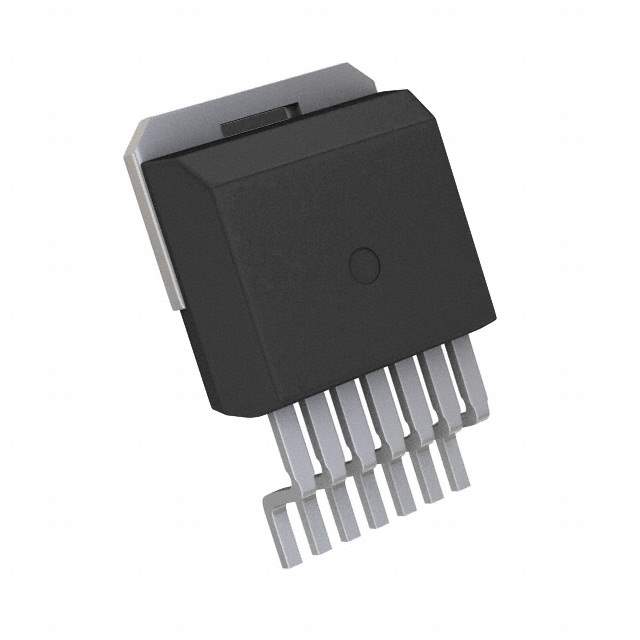

Same model may have multiple batches, images only for reference.

C3M0280090J

Name: C3M0280090J
Brand: Cree/Wolfspeed
SKU: 1324546
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	C3M0280090J
Manufacturer	Cree/Wolfspeed
Catalog	Transistors - FETs, MOSFETs - RF
Description	SICFET N-CH 900V 11A D2PAK-7 / N-Channel 900 V 11A (Tc) 50W (Tc) Surface Mount TO-263-7
Datasheet	C3M0280090J Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Wolfspeed, Inc.
Packaging	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	360mOhm @ 7.5A, 15V
Vgs(th) (Max) @ Id	3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs	9.5 nC @ 15 V
Vgs (Max)	+18V, -8V
Input Capacitance (Ciss) (Max) @ Vds	150 pF @ 600 V
Power Dissipation (Max)	50W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Supplier Device Package	TO-263-7
Case / Package	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Base Product Number	C3M0280090
RoHS Status	RoHS Compliant
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	50
Win Source Part Number	1324546-C3M0280090J
Ultra Librarian 3D Model	Ultra Librarian C3M0280090J CAD Model

Alternative Products

Description

The Wolfspeed, Inc. SiCFET (Silicon Carbide) N-Channel FET is a high-performance transistor with a drain to source voltage (Vdss) of 900 V and a continuous drain current (Id) of 11A (Tc) @ 25°C.

Drain to Source Voltage (Vdss): 900 V
Continuous Drain Current (Id): 11A (Tc) @ 25°C
Maximum Rds On: 360mOhm @ 7.5A, 15V
Package: TO-263-7
Gate Charge (Qg): 9.5 nC @ 15 V
Input Capacitance (Ciss): 150 pF @ 600 V
Temperature Range: -55°C to 150°C (TJ)
ROHS Compliant: true
