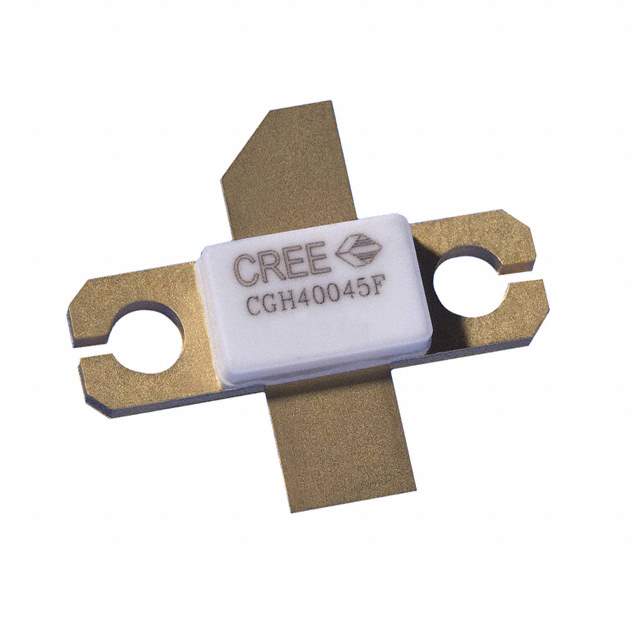

CGH40045F Real Image
Same model may have multiple batches, images only for reference.

CGH40045F

Part No CGH40045F
Manufacturer Cree/Wolfspeed
Catalog Transistors - FETs, MOSFETs - RF
Description RF MOSFET HEMT 28V 440193  /  RF Mosfet HEMT 28 V 400 mA 0Hz ~ 4GHz 14dB 55W 440193
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - RF
Mfr Wolfspeed, Inc.
Series GaN
Package Tray
Product Status Not For New Designs
Transistor Type HEMT
Frequency 0Hz ~ 4GHz
Gain 14dB
Voltage - Test 28 V
Current Rating (Amps) 14A
Current - Test 400 mA
Power - Output 55W
Voltage - Rated 84 V
Package / Case 440193
Supplier Device Package 440193
Base Product Number CGH40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0075
Other Names CGH40045FE
Standard Package 120
Win Source Part Number 1013817-CGH40045F
Ultra Librarian 3D Model Ultra Librarian CGH40045F CAD Model

Description

The CGH40045F is a high-performance GaN RF MOSFET transistor designed to be used in discrete semiconductor products, particularly in the category of transistors - FETs, MOSFETs - RF.

  • Manufacturer: Wolfspeed, Inc.
  • Package: Tray
  • Standard Package: 120
  • Voltage Rating: 84 V
  • Frequency Range: 0 Hz to 4 GHz
  • Current Test: 400 mA
  • Gain: 14 dB
  • Transistor Type: HEMT
  • Voltage Test: 28 V
  • Power Output: 55 W
  • MSL Level: 1 (Unlimited)
  • Current Rating: 14 A
  • HTSUS: 8541.29.0075
  • Status: Not Recommended for New Designs
