Same model may have multiple batches, images only for reference.

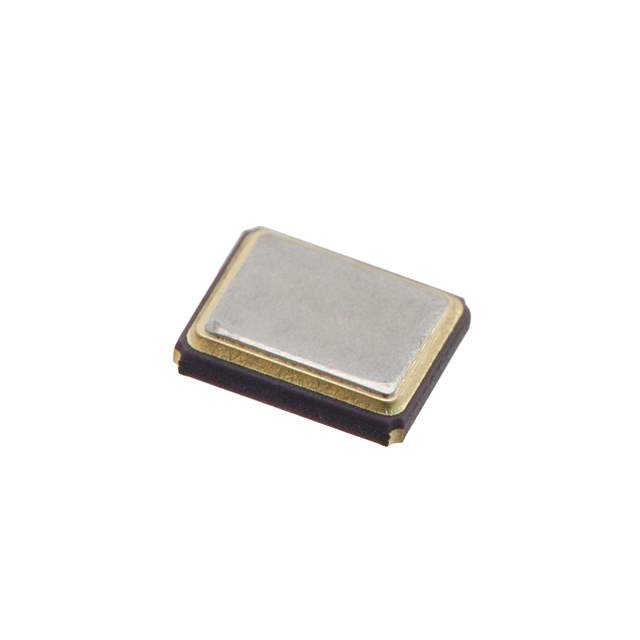

403I35E12M00000 Real Image
Same model may have multiple batches, images only for reference.

403I35E12M00000

Part No 403I35E12M00000
Manufacturer CTS-Frequency Controls
Catalog Crystals
Description CRYSTAL 12.0000MHZ 20PF SMD / 12 MHz ±30ppm Crystal 20pF 150 Ohms 4-SMD, No Lead
Datasheet
403I35E12M00000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr CTS-Frequency Controls
Series 403
Package Tape & Reel
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
California Prop 65 Warning Information
Win Source Part Number 1340022-403I35E12M00000
Ultra Librarian 3D Model Ultra Librarian 403I35E12M00000 CAD Model

Description

The 403I35E12M00000 is a MHz crystal from the 403 series.

  • Frequency: 12 MHz
  • ESR (Equivalent Series Resistance): 150 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.126” L x 0.098” W (3.20mm x 2.50mm)
  • Mounting Type: Surface Mount
  • Standard Package: 3,000
  • ECCN: EAR99
  • REACH: Not affected by REACH
  • Supplier: CTS-Frequency Controls
  • HTSUS: 8541.60.0050
