Same model may have multiple batches, images only for reference.

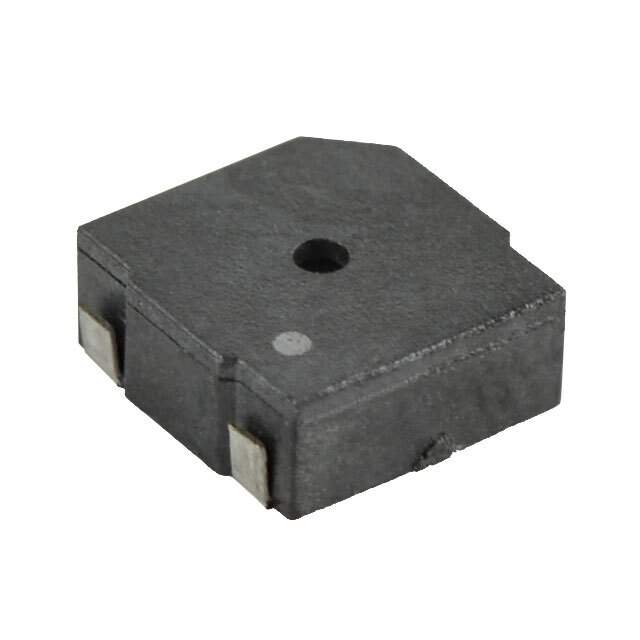

CMT-5023S-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

CMT-5023S-SMT-TR

Part No CMT-5023S-SMT-TR
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER MAGNETIC 3V 5X5MM SMD / Buzzers Transducer, Externally Driven Magnetic 3 V 110mA 4kHz 80dB @ 3V, 10cm Surface Mount Solder Pads
Datasheet
CMT-5023S-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr CUI Devices
Series CMT
Package Tape & Reel
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 3 V
Voltage Range 2 ~ 4V
Frequency 4kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 80dB @ 3V, 10cm
Current - Supply 110mA
Port Location Top
Temperature Range - Operating -30°C ~ 70°C
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.083" (2.10mm)
Base Product Number CMT-5023
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1340608-CMT-5023S-SMT-TR
Ultra Librarian 3D Model Ultra Librarian CMT-5023S-SMT-TR CAD Model

Description

The 1340608-CMT-5023S-SMT-TR Alarms, Buzzers, and Sirens by CUI Devices is a surface mount audio product that comes in a tape & reel package.

  • Packaging: Tape & Reel
  • Standard Package: 2,500
  • Voltage Rating: 3V
  • Technology: Magnetic
  • Frequency: 4kHz
  • Input Type: Zero-Peak Signal
  • Current Supply: 110mA
  • Operating Mode: Single Tone
  • Voltage Range: 2 ~ 4V
  • Sound Pressure Level (SPL): 80dB @ 3V, 10cm
  • RoHS Compliant: Yes
  • Base Product Number: CMT-5023
  • ECCN: EAR99
