Same model may have multiple batches, images only for reference.

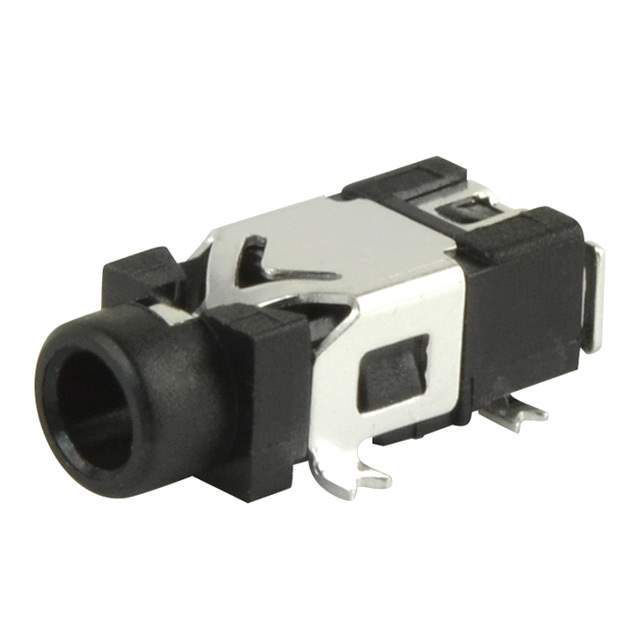

SJ2-25103B-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

SJ2-25103B-SMT-TR

Part No SJ2-25103B-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description AUDIO JACK, 2.5 MM, RT, 3 CONDUC / 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
SJ2-25103B-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr CUI Devices
Series SJ2
Package Cut Tape
Product Status Obsolete
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter 0.102" (2.60mm)
Number of Positions/Contacts 3 Conductors, 4 Contacts
Internal Switch(s) Single Switch
Mounting Type Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.433" (11.00mm)
Contact Material - Plating Silver
Body Color Black
Housing Material Polyamide (PA10T) , Nylon 10T
Contact Material Copper Alloy
Base Product Number SJ2-25
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1349523-SJ2-25103B-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ2-25103B-SMT-TR CAD Model

Description

The SJ2 series phone jack connector from CUI Devices is a female connector with 3 conductors and 4 contacts.

  • Shielded: Unshielded
  • Voltage Rating: 12VDC
  • Contact Material: Copper Alloy, Silver Plating
  • Mounting Type: Surface Mount
  • Mounting Orientation: Right Angle
  • Operating Temperature: -25°C to 85°C
  • Color: Black
  • Mating Length: 0.433"
  • Mating Diameter: 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
  • Actual Diameter: 0.102" (2.60mm)
  • Standard Package: 1,000
