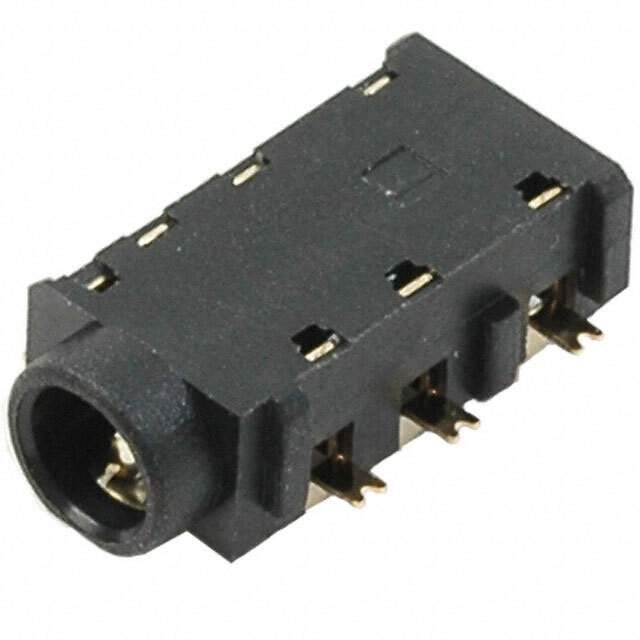

SJ-43614-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

SJ-43614-SMT-TR

Part No SJ-43614-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK 4COND 3.5MM SMD R/A / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Datasheet
SJ-43614-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Audio Connectors
Mfr CUI Inc.
Series SJ
Package Tape & Reel
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 4 Conductors, 4 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Board Cutout, Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features -
Insulation Color -
Temperature Range - Operating -20°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Gold
Body Material -
Body Color Black
Includes -
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material Copper Alloy
Cable Opening -
Panel Hole Size -
Thread Size -
Base Product Number SJ-43
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 650 pcs
Win Source Part Number 1380892-SJ-43614-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ-43614-SMT-TR CAD Model

Description

The SJ-43614-SMT-TR is a phone jack connector from the SJ series manufactured by CUI Inc..

  • Series: SJ
  • Mounting Type: Surface Mount
  • Mounting Orientation: Right Angle
  • Gender: Female
  • Shielded: Unshielded
  • Conductors: 4
  • Contacts: 4
  • Application: Stereo Audio
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Rated Voltage: 12VDC
  • Operating Temperature: -20°C to 85°C
