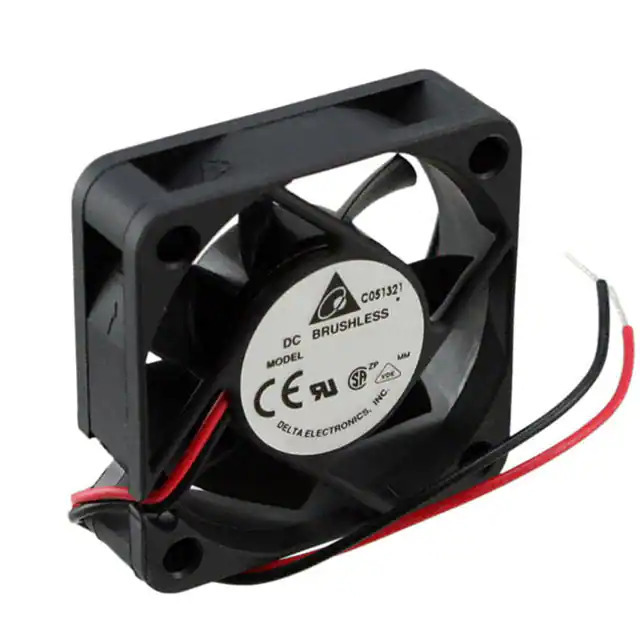

AFB0512HHB Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0512HHB

Part No AFB0512HHB
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 50X15MM 12VDC WIRE
Datasheet
AFB0512HHB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 50mm L x 50mm H
Width 15.00mm
Air Flow 16.2 CFM (0.454m³/min)
Static Pressure 0.315 in H2O (78.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 36.0dB(A)
Power (Watts) 1.56 W
RPM 6400 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.071 lb (32.21 g)
Current Rating (Amps) 0.130A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0512
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368422-AFB0512HHB
Ultra Librarian 3D Model Ultra Librarian AFB0512HHB CAD Model

Description

The AFB0512HHB is a DC brushless fan manufactured by Delta Electronics.

  • Series: AFB
  • Size: 50mm x 50mm
  • Rated Voltage: 12VDC
  • Current Rating: 0.130A
  • Power Consumption: 1.56W
  • Bearing Type: Ball Bearing
  • Rated Lifetime: 70,000 hours @ 40°C
  • Protection: Locked Rotor Protection
  • Air Flow: 16.2 CFM (0.454m³/min)
  • Static Pressure: 0.315 in H2O (78.5 Pa)
  • Noise Level: 36.0dB(A)
  • Maximum Speed: 6400 RPM
