Same model may have multiple batches, images only for reference.

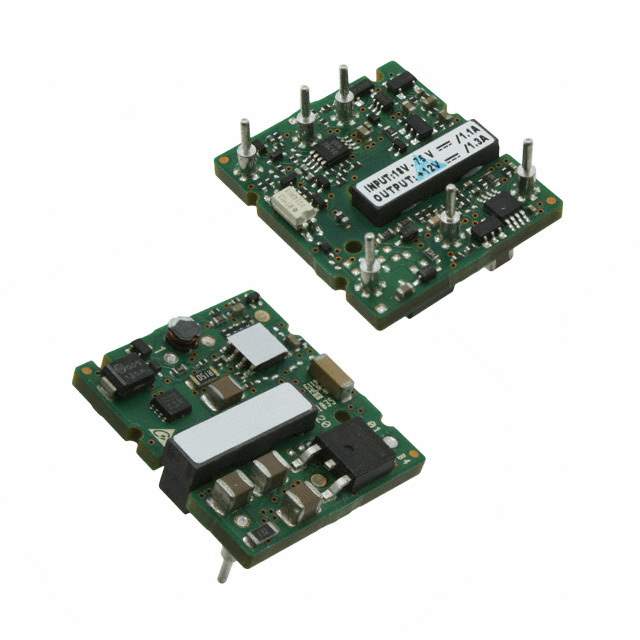

S36SE12001NRFB Real Image
Same model may have multiple batches, images only for reference.

S36SE12001NRFB

Part No S36SE12001NRFB
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description Delphi S36SE, 17W 1x1 Brick Series DC/DC Power Modules: 18~75V in, 3.3V/5A out
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Delta Electronics
Series Delphi S36SE
Packaging Tray
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 75V
Voltage - Output 1 12V
Current - Output (Maximum) 1.3A
Power (Watts) 17W
Voltage - Isolation 2.25kV (2250V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature Range -40°C ~ 123°C
Efficiency 87%
Mounting Style Through Hole
Package 6-DIP Module
Size 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm)
Control Features Enable, Active Low
Win Source Part Number 1245379-S36SE12001NRFB
Manufacturer Homepage www.deltaww.com
Popularity Medium
Supply and Demand Status Limited
Family Name S36SE12001N
Introduction Date January 06, 2008
Country of Origin Thailand
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian S36SE12001NRFB CAD Model

Description

The Delta Electronics 1245379-S36SE12001NRFB is an isolated module type electronic component that belongs to the Delphi S36SE series.

  • Packaging: Tray
  • Mounting Style: Through Hole
  • Operating Temperature: -40°C to 123°C
  • Features: Remote On/Off, OCP, OTP, OVP, and UVLO
  • Package: 6-DIP Module
  • Application: ITE (commercial)
  • Power Wattage: 17W
  • Size: 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm)
  • Control Features: Enable, Active Low
  • Voltage Isolation: 2.25kV (2250V)
  • Number of Outputs: 1
  • Voltage Output 1: 12V
  • Efficiency: 87%
  • Family Name: S36SE12001N
  • Categories: Power Supplies - Board Mount
  • Manufacturer's Homepage: www.deltaww.com
  • Introduction Date: January 06, 2008
  • Country of Origin: Thailand
  • Estimated EOL Date: 2025
