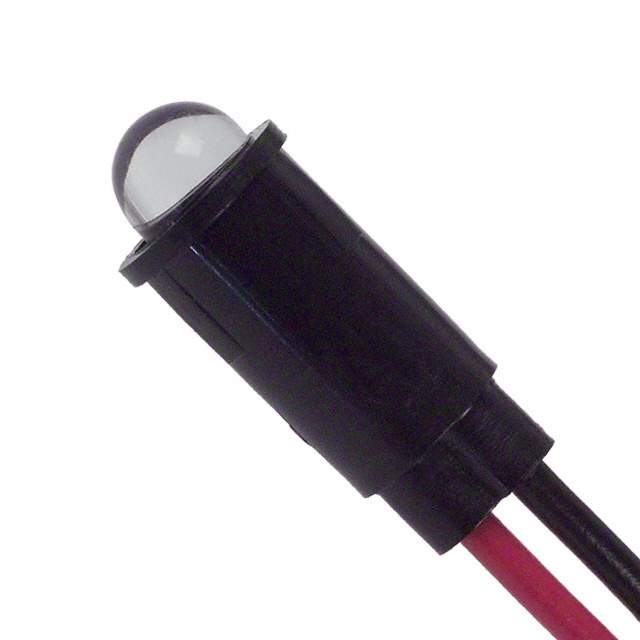

559-6201-007F Real Image
Same model may have multiple batches, images only for reference.

559-6201-007F

Part No 559-6201-007F
Manufacturer Dialight
Catalog Optics - LEDs - Light Pipes
Description LED Panel Mount Indicator Uni-Color Green 525nm 5000mcd 2-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals UL
Color Green
Current 30 mA
Current Rating 20 mA
Depth 7.41 mm
Diameter 5 mm
Forward Current 30 mA
Forward Voltage 3.5 V
Illumination Color Green
Lead Free Yes
Lead Length 12.7 mm
Length 7.41 mm
Lens Color Colorless, Green
Lens Style Colorless, Diffused, Dome
Lens Transparency Clear
Life (Hours) 100000 hours
Luminous Intensity 2.2 cd
Maximum Operating Temperature 85 °C
Min Operating Temperature -30 °C
Mount Front, Panel
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Operating Supply Voltage 3.5 V
Packaging Bulk
Peak Wavelength 535 nm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8541402000
Termination Wire
Test Current 20 mA
Viewing Angle 30 °
Voltage 3.5 V
Voltage Rating 3.5 V
Voltage Rating (DC) 3.5 V
Wavelength 525 nm
Win Source Part Number 1019983-559-6201-007F
Categories Optics - LEDs - Light Pipes
Manufacturer Dialight
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 559-6201-007F CAD Model

Description

The 1019983-559-6201-007F is a green LED manufactured by Dialight.

  • Diameter: 5mm
  • Length: 7.41mm
  • Forward Voltage: 3.5V @ 20mA
  • Viewing Angle: 30°
  • Luminous Intensity: 2.2cd
  • Lens Color: colorless and green
  • Lens Transparency: clear
  • Peak Wavelength: 535nm
  • Wavelength: 525nm
  • Number of Elements: 1
  • Forward Current: 30mA
  • Mounting: front and panel mounting
  • RoHS Compliant: Yes
  • Life: 100,000 hours
  • Packaging: bulk
