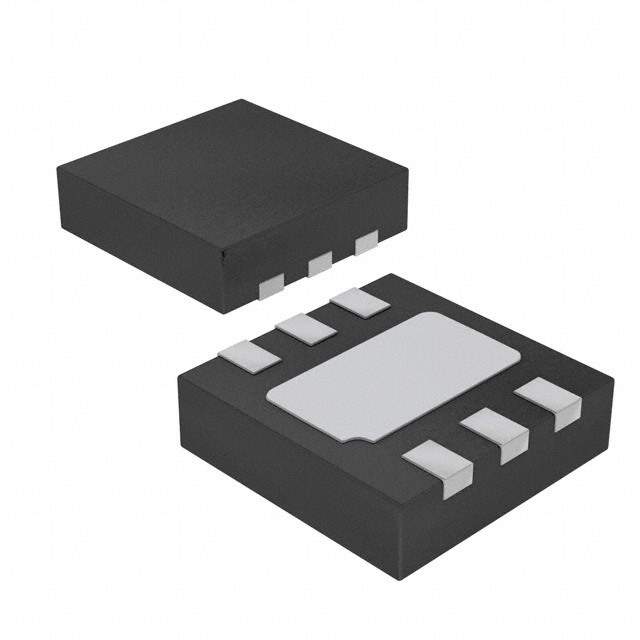

The AL5812FF-7 from Diodes Incorporated is a highly efficient, precision LED driver designed to meet a wide range of illumination and indication applications. This linear LED driver offers a simple yet effective solution for driving LED strings from a voltage source higher than the LED voltage.

Key Features

• Wide Input Voltage Range: The device can handle an input voltage range from 4.5V to 60V, making it versatile for various LED applications.
• Constant Current Regulation: It provides a constant current output, which can be set with an external resistor (RSET) to ensure uniform brightness for the LEDs.
• High Efficiency: The AL5812FF-7 is designed for high efficiency, which helps in reducing power loss and improving overall system reliability.
• Thermal Foldback Protection: The built-in thermal foldback feature protects the device and the LEDs by reducing the output current when the internal temperature exceeds a preset threshold.
• Small Form Factor: Packaged in a compact SOD-123F package, it is ideal for space-constrained applications.

Applications

The AL5812FF-7 is suitable for a broad array of applications including but not limited to:

• LED backlighting for LCD TVs and monitors
• Automotive interior, tail, and indicator lighting
• Architectural and decorative LED lighting
• General illumination and signage

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the AL5812FF-7 is no exception. It is built to the highest standards to ensure reliable performance in a variety of conditions. The device's robust design ensures longevity and consistent operation, making it a preferred choice for designers looking for a dependable LED driving solution.

For detailed technical specifications, application circuits, and typical performance characteristics, refer to the AL5812FF-7 datasheet available on the Diodes Incorporated website or through authorized distributors.
