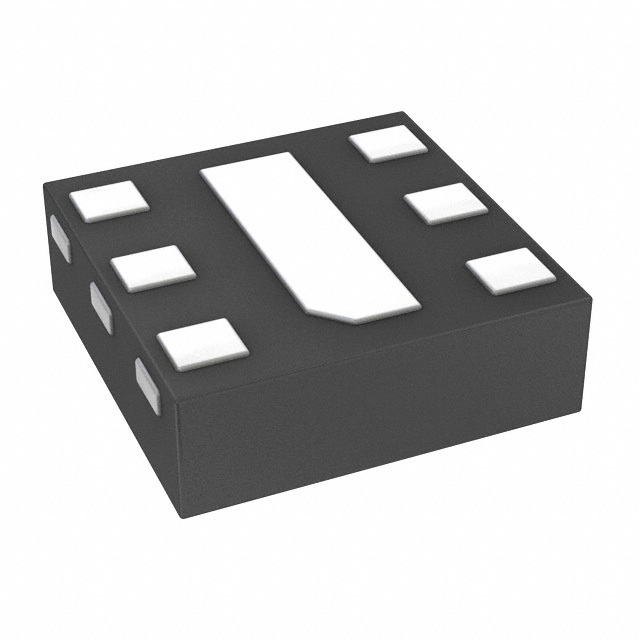

Same model may have multiple batches, images only for reference.
AP7346D-2833FS6-7 Diodes Incorporated – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AP7346D-2833FS6-7

Part No AP7346D-2833FS6-7
Manufacturer Diodes Incorporated
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 2.8/3.3V X2-DFN1212-6
Datasheet
AP7346D-2833FS6-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Output Configuration Positive
Output Type Fixed
Number of Regulators 2
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 2.8V, 3.3V
Voltage Dropout (Max) 0.3V @ 120mA, 0.29V @ 120mA
Current - Output 130mA, 130mA
Current - Quiescent (Iq) 100 µA
PSRR 75dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Case / Package 6-XFDFN Exposed Pad
Supplier Device Package X2-DFN1212-6
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1503656-AP7346D-2833FS6-7
Ultra Librarian 3D Model Ultra Librarian AP7346D-2833FS6-7 CAD Model

Description

N
