Product Overview: AZ1117EH-5.0TRG1

The AZ1117EH-5.0TRG1 is a high-performance, low-dropout linear regulator designed by Diodes Incorporated, offering a fixed output voltage of 5.0 volts. This component is tailored to deliver a continuous output current of up to 1A, making it an ideal choice for a wide range of applications that demand a stable and reliable power supply.

Constructed with an advanced circuit design, the AZ1117EH-5.0TRG1 boasts excellent transient response and low dropout voltage, which is critical for maintaining voltage stability across varying load conditions. This feature ensures that devices powered by this regulator maintain optimal performance even when the input voltage is close to the output voltage.

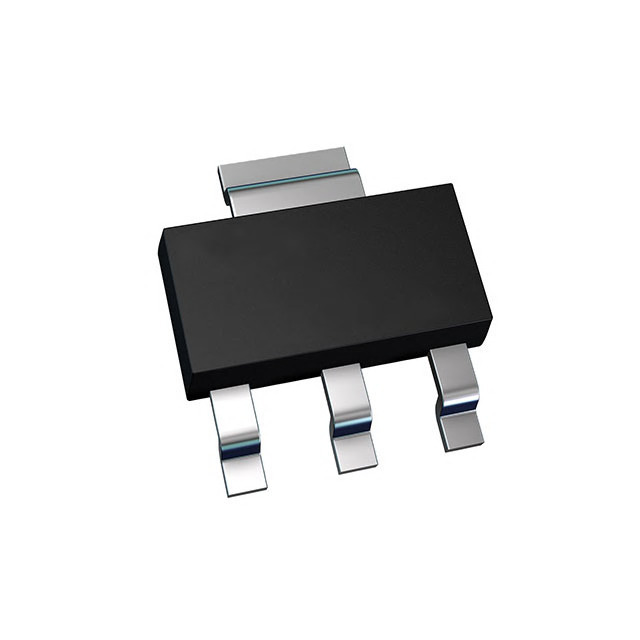

The AZ1117EH-5.0TRG1 comes in a compact SOT-223 package, which not only saves valuable board space but also provides adequate power dissipation. Its small footprint makes it a perfect fit for space-constrained applications such as portable electronics, consumer devices, and embedded systems.

With built-in protection features, this regulator enhances the safety and longevity of your electronic designs. It includes over-current protection to prevent damage from excessive loads, and thermal shutdown to protect the device from overheating. These safeguards contribute to the reliable operation of the end product under various conditions.

For design flexibility, the AZ1117EH-5.0TRG1 supports a wide input voltage range, allowing it to be used in systems with varying power supply conditions. Its low noise output makes it suitable for noise-sensitive applications such as audio and RF circuits.

In summary, the AZ1117EH-5.0TRG1 from Diodes Incorporated is a robust and efficient solution for applications requiring a fixed 5V output. Its high current capability, low dropout performance, compact size, and protective features make it an excellent choice for designers looking to enhance their power management systems with a reliable voltage regulator.

Whether you're developing consumer electronics, industrial equipment, or any other application that demands a stable 5V supply, the AZ1117EH-5.0TRG1 stands out as a dependable component that can help streamline your power design process.
