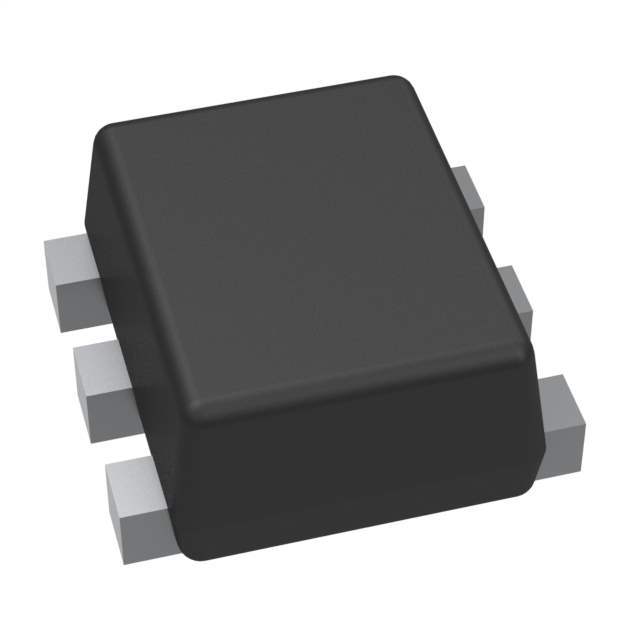

DMN2991UDJ-7 Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMN2991UDJ-7

Part No DMN2991UDJ-7
Manufacturer Diodes Incorporated
Catalog TRANSISTORS
Description MOSFET 2N-CH 20V 0.52A SOT963
Datasheet
DMN2991UDJ-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products >Transistors FETs, MOSFETs FET, MOSFET Arrays
Part Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual)
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 520mA (Ta)
Rds On (Max) @ Id, Vgs 990mOhm @ 100mA, 4.5V
Vgs(th) (Max) @ Id 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 0.35nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds 21.5pF @ 15V
Power - Max 400mW (Ta)
Win Source Part Number WS1310367-DMN2991UDJ-7
Ultra Librarian 3D Model Ultra Librarian DMN2991UDJ-7 CAD Model

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
