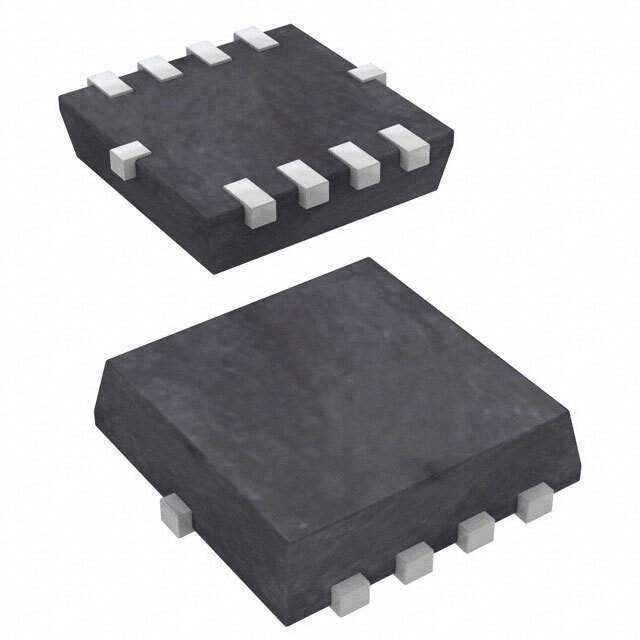

Same model may have multiple batches, images only for reference.
DMT3020LDV-7Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMT3020LDV-7

Part No DMT3020LDV-7
Manufacturer Diodes Incorporated
Catalog TRANSISTORS
Description MOSFET 2N-CH 30V 32A PWRDI3333
Datasheet
DMT3020LDV-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products> Transistors FETs, MOSFETs FET, MOSFET Arrays
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 32A (Tc)
Rds On (Max) @ Id, Vgs 20mOhm @ 9A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 393pF @ 15V
Power - Max 900mW (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-PowerVDFN
Win Source Part Number WS1310238-DMT3020LDV-7
Ultra Librarian 3D Model Ultra Librarian DMT3020LDV-7 CAD Model

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
