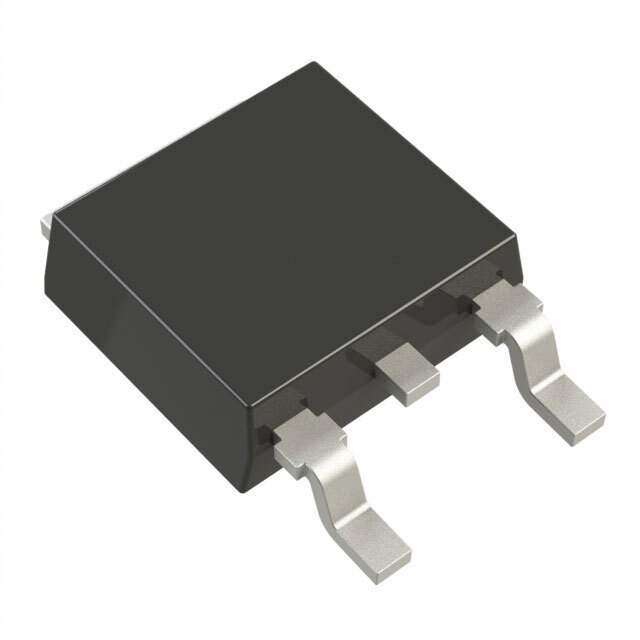

Same model may have multiple batches, images only for reference.
DMTH6016LK3-13Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMTH6016LK3-13

Part No DMTH6016LK3-13
Manufacturer Diodes Incorporated
Catalog TRANSISTORS
Description MOSFET N-CH 60V 10.8 TO252 T&R
Datasheet
DMTH6016LK3-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products >Transistors >FETs, MOSFETs Single FETs, MOSFETs
Part Status Active
FET Type N-Channel
Drain to Source Voltage (Vdss) 60 V
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 17mOhm @ 10A, 10V
Gate Charge (Qg) (Max) @ Vgs 17 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 864 pF @ 30 V
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Win Source Part Number WS1310081-DMTH6016LK3-13
Ultra Librarian 3D Model Ultra Librarian DMTH6016LK3-13 CAD Model

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

ā—  Power Management Functions ā—  DC-DC Converters<br />ā—  Backlighting
