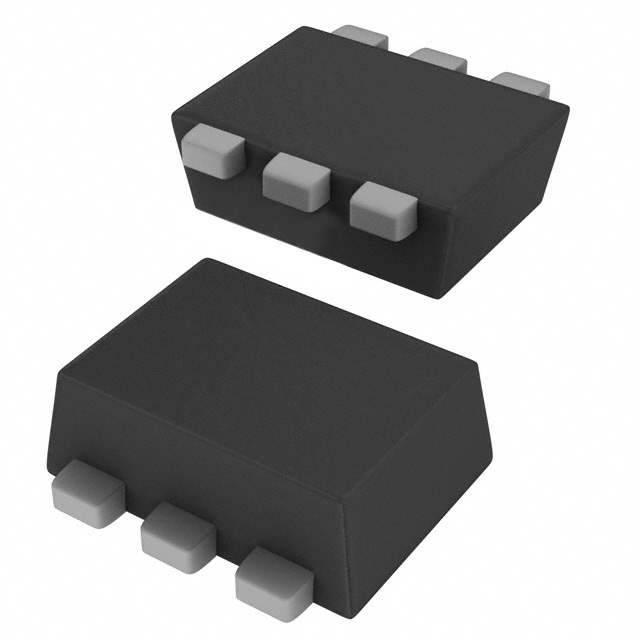

Introducing the DST3946DPJ-7 P-Channel MOSFET from Diodes Incorporated

The DST3946DPJ-7 is a high-performance P-Channel MOSFET brought to you by Diodes Incorporated, a leading manufacturer in the semiconductor market. This MOSFET is designed for power management applications that require efficient power conversion and switching. Its compact design and robust performance make it an ideal choice for a wide range of electronic devices.

Key Features

• Device Type: P-Channel MOSFET
• Package: PowerDI3333-8
• V<sub>DS: -30V
• V<sub>GS: ±20V
• I<sub>D: -3.7A
• R<sub>DS(on): 70mΩ at V<sub>GS = -10V
• Continuous Drain Current: -3.7A
• Power Dissipation: 2.5W
• Operating Temperature Range: -55°C to +150°C

Performance and Applications

The DST3946DPJ-7 offers excellent on-resistance and low threshold voltage, ensuring minimal power loss during operation. It is capable of handling continuous drain currents up to -3.7A, making it suitable for high-efficiency power management tasks. The MOSFET operates over a wide temperature range, ensuring reliability and stability in various environments.

With its compact PowerDI3333-8 package, the DST3946DPJ-7 is an excellent choice for space-constrained applications. It is commonly used in load switch circuits, battery management systems, and other power-related functions in consumer electronics, portable devices, and industrial equipment.

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability. The DST3946DPJ-7 is no exception; it undergoes rigorous testing to ensure it meets the high standards expected by the industry. Users can trust this MOSFET to deliver consistent performance and longevity, contributing to the overall durability and efficiency of their electronic products.

For detailed specifications, application notes, and additional resources, please visit the Diodes Incorporated website or contact their support team for technical assistance.
