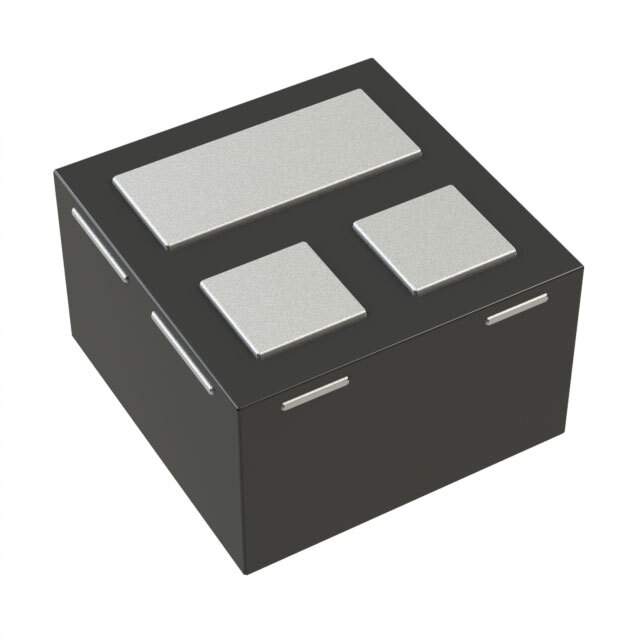

Product Overview: MMBT3906FZ-7B

The MMBT3906FZ-7B, from Diodes Incorporated, is a high-quality PNP transistor designed for general-purpose amplifier and switching applications. This semiconductor device is part of the extensive MMBT390x series, known for its reliability and performance in a wide range of electronic circuits.

Key Features

• Device Type: PNP Bipolar Junction Transistor (BJT)
• Configuration: Single
• Collector-Emitter Voltage (V<sub>CEO): 40V
• Collector-Base Voltage (V<sub>CBO): 40V
• Emitter-Base Voltage (V<sub>EBO): 5V
• Collector Current (I<sub>C): 200mA
• Power Dissipation (P<sub>D): 300mW
• DC Current Gain (h<sub>FE): 100 to 300 at 10mA, V<sub>CE = 1V
• High Transition Frequency: f<sub>T of 300MHz (minimum)
• Operating and Storage Junction Temperature Range: -55°C to +150°C
• Package: SOT-523F
• RoHS Compliant: Yes

Applications

The MMBT3906FZ-7B is suitable for a broad range of applications, including but not limited to:

• Signal amplification
• Switching circuits
• Linear amplification
• Power management
• Regulation systems
• Consumer electronics
• Telecommunication devices

Quality and Reliability

Diodes Incorporated is committed to providing high-quality components that meet rigorous industry standards. The MMBT3906FZ-7B is manufactured with the company's advanced semiconductor processes, ensuring consistent performance and durability. Its compact SOT-523F package is designed for surface-mount technology (SMT), allowing for efficient assembly and space-saving design in PCB layouts.

Environmental Compliance

The MMBT3906FZ-7B is fully RoHS compliant, meaning it is manufactured without hazardous substances such as lead, mercury, and cadmium. This compliance ensures that the product is environmentally friendly and suitable for use in a wide range of consumer electronics without compromising the safety and sustainability of the environment.

With its comprehensive set of features and Diodes Incorporated's reputation for reliability, the MMBT3906FZ-7B is an excellent choice for designers and engineers looking to incorporate a dependable PNP transistor into their electronic designs.
