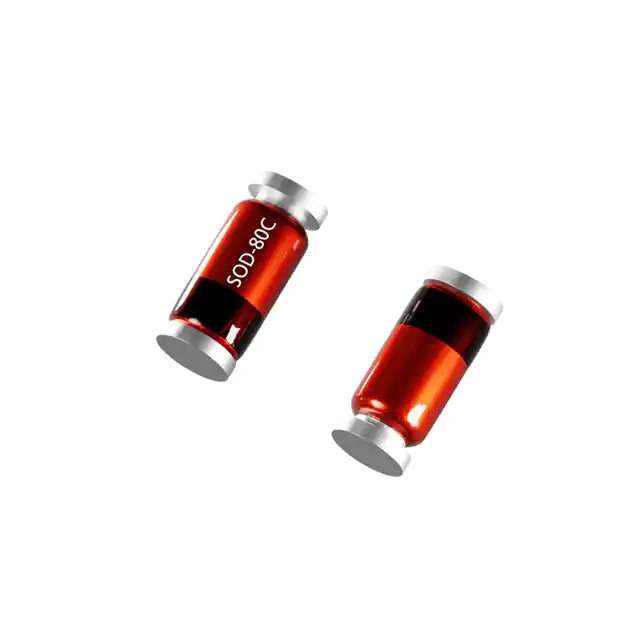

LL101C

Name: LL101C
Brand: DIOTEC Electronics Corporation
SKU: 613832
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	LL101C
Manufacturer	DIOTEC Electronics Corporation
Catalog	Diodes, Rectifiers - Single
Description	SCHOTTKY SOD-80 40V 0.015A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	DIOTEC Electronics Corporation
Package	Tape & Reel
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	15mA
Voltage - Forward (Vf) (Max) @ If	900 mV @ 15 mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	1 ns
Current - Reverse Leakage @ Vr	200 nA @ 40 V
Capacitance @ Vr, F	2.2pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	SOD-80C
Operating Temperature - Junction	-55°C ~ 200°C
Standard Package	2,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8541.10.0000
Win Source Part Number	613832-LL101C
Ultra Librarian 3D Model	Ultra Librarian LL101C CAD Model

Alternative Products

Description

The 613832-LL101C is a single diode rectifier designed for small signal applications.

Maximum Reverse Voltage: 40V
Average Rectified Current: 15mA
Forward Voltage: 900mV @ 15mA
Reverse Recovery Time: 1ns
Reverse Leakage Current: 200nA @ 40V
Mounting: Surface mountable
Package: DO-213AC, MINI-MELF, SOD-80
Operating Temperature: -55°C to 200°C
Standard Package: 2,500 pcs
HTSUS Code: 8541.10.0000
